Description

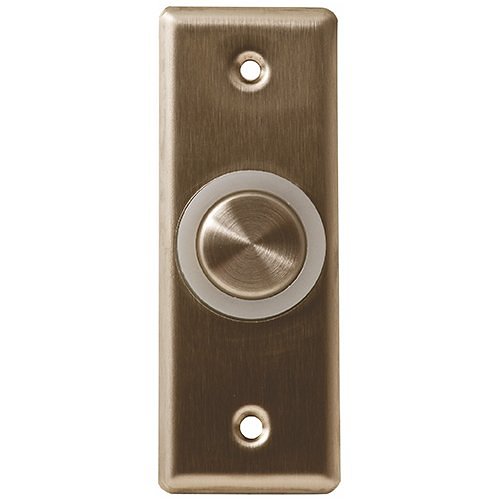

The CM-9600 and CM-9610 Series of flush mount illuminated piezo push switches are designed for optimal visibility and are highly resistant to weather and vandalism—ideal for demanding access control and security environments. These switches feature a robust stainless-steel faceplate and an adjustable 40-second timer. The CM-9600 model fits a single gang width of 2-3/4 inches, while the CM-9610 is only 1-3/4 inches wide, making it well-suited for door frames or tight spaces. The 1-inch round button ensures easy activation, with illumination powered by 12 to 24 VDC. The switch illumination can be adjusted via jumper settings for On, Off, Green to Red, Red to Green, or non-lit modes. The units also offer field-selectable N/O or N/C contact output, with options for fail-safe or fail-secure operation.
