Description
The CM-9600 and CM-9610 Series flush mount illuminated piezo push button switches are designed for high visibility and enhanced weather and vandal resistance, making them ideal for security and access control applications. These robust units come equipped with a durable stainless steel faceplate and an adjustable timer up to 40 seconds.

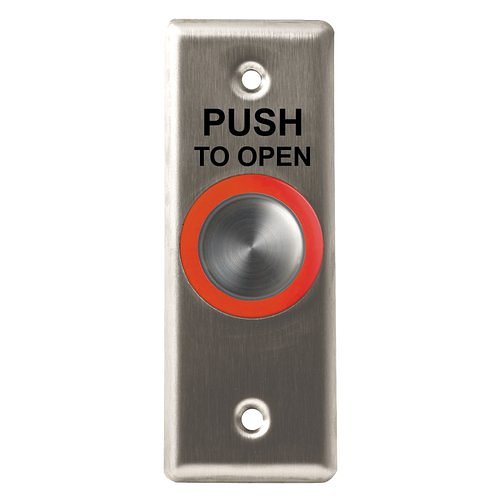

The CM-9600 model features a single gang width of 2-3/4″, while the CM-9610 is a compact 1″ & 3/4″ wide, making it an excellent choice for door frames or tight spaces. Both models include a large, easy-to-activate 1″ round diameter button. The illumination and power relay operate within a 12 to 24 VDC range. Switch illumination settings are customizable via jumper selection and can be configured for On, Off, Green to Red, Red to Green, or non-lit operation. The units are field-configurable for normally open (N/O) or normally closed (N/C) contact output and support both fail-safe and fail-secure operations.
