Description

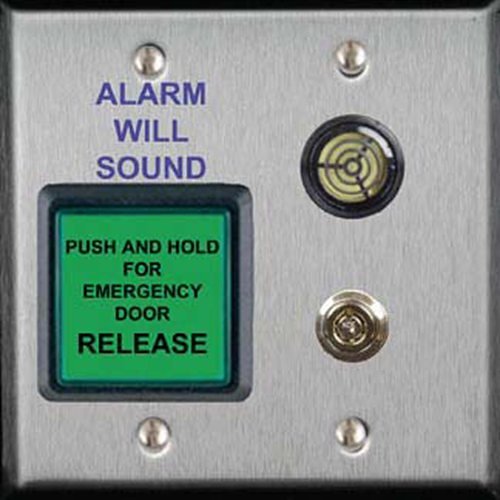

The DE-1 is a reliable solution for securing exit doors while ensuring emergency egress. It triggers an alarm when unauthorized access occurs, requiring a key switch reset to re-lock the door unless configured for automatic re-locking.
Features
Key Specifications and Characteristics
- Double gang stainless steel wall plate installation
- Includes a 2-second nuisance delay
- Key switch function for reset and re-lock
- Countdown buzzer and flashing lamp during timing mode
- 2-inch square illuminated green pushbutton with high-brightness LED
- Wall plate marked with: “ALARM WILL SOUND”
- Button labeled: “PUSH AND HOLD FOR EMERGENCY DOOR RELEASE”
Technical Specifications
Dimensions:
- Enclosure size: 1-1/2″H x 3″W x 3″L
Electrical Specifications:
- Includes one normally open (N/O) and one normally closed (N/C) contact
- Contact rating: 10A at 35 VDC or 120 VAC
