The red and white wires from the EEB2/3N should be powered by the same electrical source.
Weather-Resistant Solutions: Weather-resistant covers (WCC and WBB) are available for all single-gang push buttons, keyswitches, and keypads.
Safety Notice: With UL294 certification, using the EEB with the XMS Motion Sensor complies with the NFPA Life Safety Code 101 for exit protocols on access-controlled egress doors.
| Environmental Conditions | |
| Maximum Operating Temperature | 109.4°F (43°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| General Information | |
| Brand Name | Securitron by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | EEB3N |
| Product Model | EEB3N |

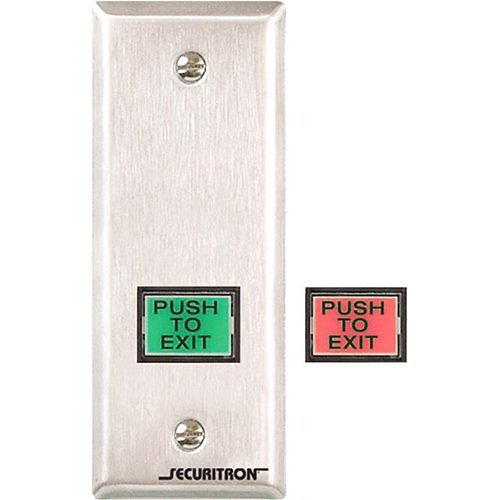

| Product Name | EEB3N Push Button |
| Product Type | Push Button |
| Miscellaneous | |
| Additional Information | Integrated retriggerable 30 second timer3 amp contacts |
| Features | Single Pole |
| Physical Characteristics | |
| Application/Usage | Access Control System, Door, Indoor |
| Color | Silver |
| Depth | 1.8" |
| Form Factor | Gang Box Mount |
| Height | 4.5" |
| Material | Stainless Steel |
| Product Color | Green |
| Product Material | Satin Stainless Steel |
| Width | 3" |
| Power Description | |
| Input Voltage | 12V DC, 24V DC |
| Product Information | |
| Contact Type | SPST |
| Finishing | Us32D Satin Stainless Steel |
| Print/Message | Push To Exit |
| Technical Information | |
| Gang Type | Single Gang |
| Maximum Timer Duration | 30-Second |
