Description

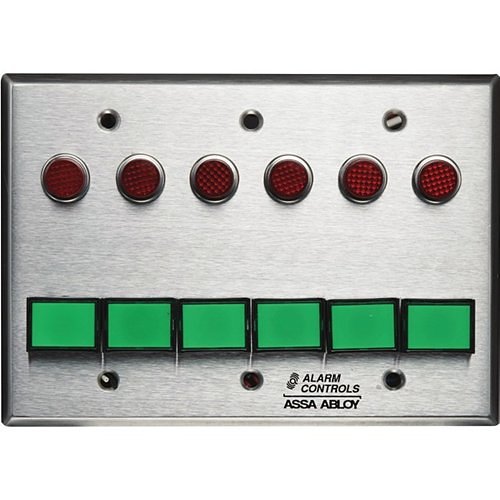

Manage and supervise access control stations utilizing rectangular illuminated DPDT momentary switches, which remain active while pressed. These stations are equipped with LED status indicators and are designed to control and monitor the operation of one or more electrified locks.
Features | Key Features
- Control and monitor multiple electrified locks
- Switches mounted on a wall plate with a stainless steel finish; available in 1, 2, 3, or 4 gang configurations
- 1/2″ red LED status indicator
- Green momentary push button with high-brightness LED illumination
Options
- XM version with X indicating the number of LEDs and illuminated momentary buttons, customizable from 1 to 8 LEDs/buttons
- Custom legends, and green and yellow LEDs available as bespoke components
Specifications | Dimensions
Varies depending on the final product
Electrical Specifications:
- DPDT switch contacts rated at 3A for 35 VDC or 120 VAC
- Switch depth behind plate: 1-1/2″
- LEDs compatible with 12 or 24 VDC/VAC
- Switch and LED connections feature color-coded leads
