$92.98

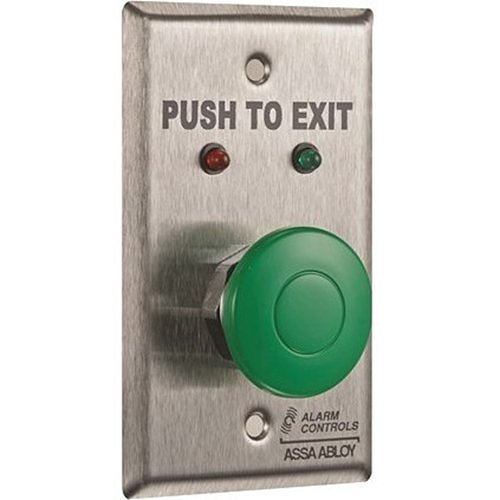

The MODEL TS-1 is engineered for compatibility with a wide range of magnetic locks and electric door strikes. Its prominently visible 1.5-inch diameter green pushbutton operates both a single pole, normally-open contact and a single pole, normally-closed contact, with contacts rated at 10 amperes at 35 volts DC. The device features independently wired red and green LEDs that function on either 12 or 24 volts AC or DC.
| Environmental Conditions | |
| Maximum Operating Temperature | 158°F (70°C) |
| Minimum Operating Temperature | 77°F (25°C) |
| General Information | |
| Brand Name | Alarm Controls by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | TS-1 |
| Product Name | TS-1 Push Button |
| Product Series | TS-1 |
| Product Type | Push Button |
| Physical Characteristics | |
| Color | Silver |
| Material | Stainless Steel |
| Product Color | Green |
| Product Material | Stainless Steel |
| Power Description | |
| Input Voltage | 120V AC, 12V DC, 24V DC, 35V DC |
| Product Information | |
| Print/Message | Push To Exit |
| Technical Information | |
| Button Size | 1.50" |
| Gang Type | Single Gang |
| Warranty | |
| Limited Warranty | Lifetime |
