Description
The TS-14 exit request station, featuring a pneumatic timer and push button, offers an effective solution to hold doors unlocked for a pre-set duration, allowing seamless access and exit. Once the relay time ends, the door automatically relocks.
**Options**

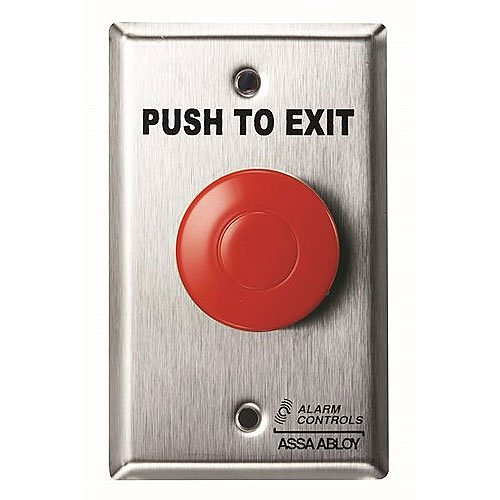

– **TS-14R**: Equipped with a red mushroom push button
– **TS-14N**: Includes a switch on a narrow 1-3/4″ wall plate with 302 stainless steel finish
– **TS-14NR**: Comes with a red push button mounted on a narrow wall plate
– **TS-14302**: Features a weather-resistant plate with 302 stainless steel finish
– Available in multiple plate finishes
– Custom screening options
**Specifications**
– **Certifications & Listings**: UL 294 listed
– **Electrical**:
– Includes one normally open (N/O) and one normally closed (N/C) contact pair
– Contacts rated for 10A at 120 VDC
– Switch depth behind plate: 2-1/4 inches
– Switch time repeatability: +/- 10%
– Switch features 10-inch colored lead terminations
– **Operating Temperature**: +15 to 120°F (-9 to 49°C)
