### Door Access Control with Pneumatic Timer
The narrow stile TS-15 and single gang TS-16 request-to-exit stations, featuring a pneumatic push button timer, offer a reliable solution for temporarily unlocking doors, ensuring seamless entry and exit. The door automatically re-locks once the preset relay time has elapsed.
#### Features
**Standard Features**

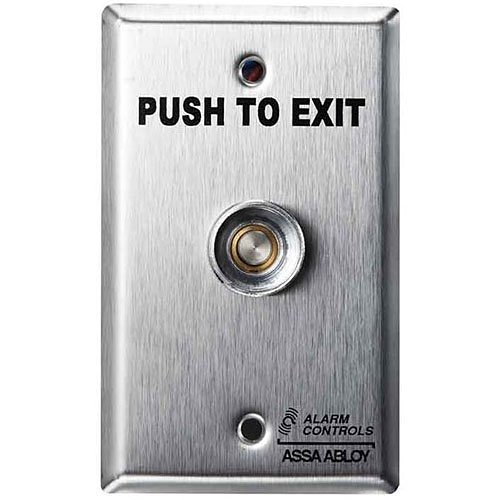

– **TS-16**: Mounted on a single gang wall plate with a 430 stainless steel finish for durability
– 1/4″ push button equipped with a guard ring for added protection
– Clearly labeled “PUSH TO EXIT” plate for straightforward egress instructions
– Adjustable pneumatic time delay ranging from 2 to 60 seconds
– Operation without the need for external power
– Timer longevity rated up to 1 million operations
**Options**
– **TS-16302**: Comes with a weather-resistant plate and 302 stainless steel finish
– Customizable screen printing available
#### Specifications
**Certifications & Listings:** UL 294 listed
**Electrical:**
– Equipped with two sets of contacts: one normally open (N/O) and one normally closed (N/C), both isolated
– Contacts rated for 10A at 120 VDC
– Switch depth behind the plate: 1-1/4”
– Consistent switch timing with a repeatability of +/- 10%
– Terminated with 10” colored leads for easy installation
**Operating Temperature:** Operates efficiently from +15 to 120 F (-9 to 49C)
