Description

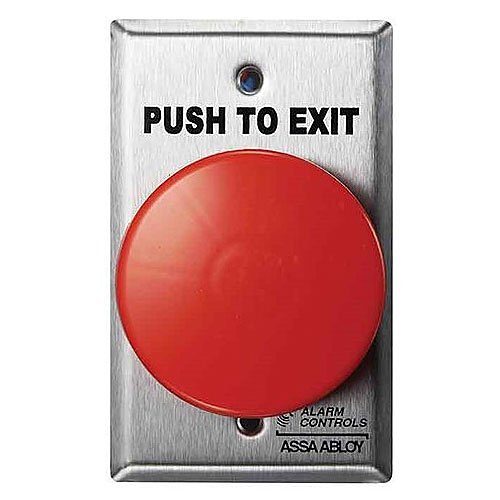

The TS-21RPN Request-to-Exit System with pneumatic timing and push-button functionality offers a seamless way to temporarily maintain an unlocked door state, facilitating hassle-free access or exit. Once the pre-set relay period concludes, the door will automatically relock. The sizable 2-1/2″ button provides a large target for easy operation and comes in various color options.
**Key Features**
– Mounted switch on a single-gang wall plate with a 430 stainless steel finish
– 2-1/2″ oversized red mushroom push button
– Plate labeled with “PUSH TO EXIT” for straightforward egress instructions
– Adjustable pneumatic time delay from 2 to 60 seconds
**Customization Options**
– **TS-21GPN** with an extra-large green mushroom push button
– Multiple plate finish options
– Custom screening available
**Technical Specifications**
– Electrical:
– One normally open (N/O) and one normally closed (N/C) contact
– Contacts rated for 10A at 120 VDC
– Switch depth behind plate: 2-1/4″
– Switch timing accuracy: repeatable within ±10%
– Switch terminated with 10” colored leads
– Operating Temperature Range: +15 to 120°F (-9 to 49°C)
