Description

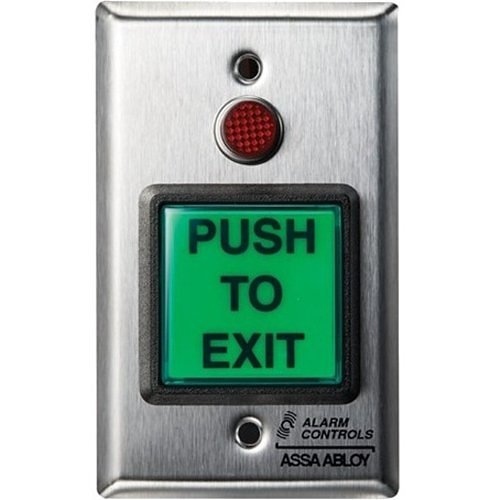

The request-to-exit station featuring an electronic timer and square push button offers a user-friendly solution for temporarily unlocking doors, facilitating seamless ingress and egress. The door automatically relocks after the pre-set duration lapses. An LED status indicator provides an intuitive visual representation of the system’s operational status.
Features
Standard Features
- Switch installed on a single gang wall plate with 430 stainless steel finish for durability
- 2″ square green push button, enhanced with high-brightness LED illumination
- Button labeled “PUSH TO EXIT” for straightforward operation
- 1/2″ illuminated red LED status indicator for easy monitoring
- Momentary SPDT timed output to control access duration
- Adjustable timer delay ranging from 2 to 45 seconds
Options
- TS-3TD with DPDT dual timed output for enhanced control
- TS-3-2T with dual SPDT outputs, featuring one set of momentary and one set of timed contacts
- Custom legends and finishes available for tailored applications
Specifications
Certifications & Listings: UL 294 listed for compliance with safety standards
Electrical:
- SPDT timed contacts rated at 2A, 35 VDC for reliable performance
- Switch depth behind plate is 2-1/2″ for compact installation
- Switch terminated with 10” colored leads for easy wiring
- LED operates on 12 or 24 VAC/VDC for versatile power options
