Description
The TS-7 and TS-9 request-to-exit stations, featuring a single gang and narrow stile configuration respectively, offer an efficient solution for enhancing access control systems across diverse applications. These door release stations are equipped with a robust rectangular push button and can be augmented with a timer relay for scenarios requiring extended door unlocking durations.
Features
Standard Features

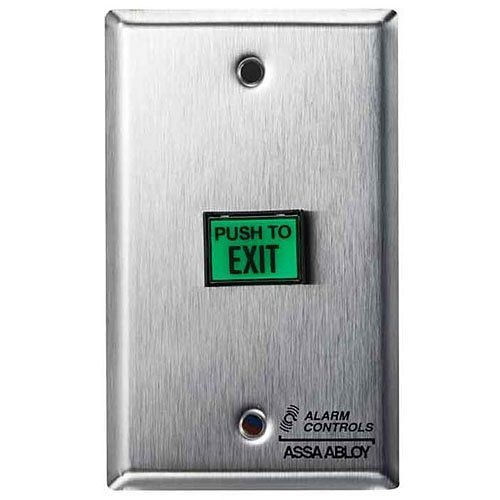

- TS-7: Mounted on a single gang wall plate with a 430 stainless steel finish for durability.
- TS-9: Mounted on a narrow 1-3/4″ wall plate crafted from 302 stainless steel for sleek integration.
- Compact 5/8″ x 7/8″ green rectangular push button, illuminated with high-brightness LED for visibility.
- Button labeled “PUSH TO EXIT” to provide clear egress instructions.
- Features a momentary DPDT action switch for operational flexibility.
Options
- TS-7, TS-9L: Available with a latching action switch for secure holding.
- TS-7T, TS-9T: Timed output versions with adjustable timers ranging from 2 to 45 seconds.
- Multiple plate finishes to suit various aesthetic preferences.
- Custom legends available as a bespoke option.
Specifications
Certifications & Listings: UL 294 listed to ensure compliance with access control standards.
Electrical:
- DPDT timed contacts rated for 3A at 35 VDC or 120 VAC, supporting reliable operation.
- Timed output features SPDT contacts rated at 2A at 35 VDC.
- Compact switch design with a depth of 1-1/4″ behind the plate.
- Switch connections made via 10” colored leads for ease of installation.
- LED functionality is compatible with both 12 and 24 VAC/VDC power sources.
Operating Temperature: Designed to operate efficiently in temperatures ranging from -13°F to +158°F (-25°C to 70°C).
