Description
The single-gang TS-7 and narrow stile TS-9 request-to-exit stations, equipped with a rectangular push button, offer an efficient solution for integrating authorized access control across diverse applications. Available with timer relay options, the TS-7 and TS-9 are ideal for scenarios that require doors to stay unlocked for a specified duration.
### Features
**Standard Features**
– **TS-7**: Switch installed on a single-gang wall plate with a 430 stainless steel finish.

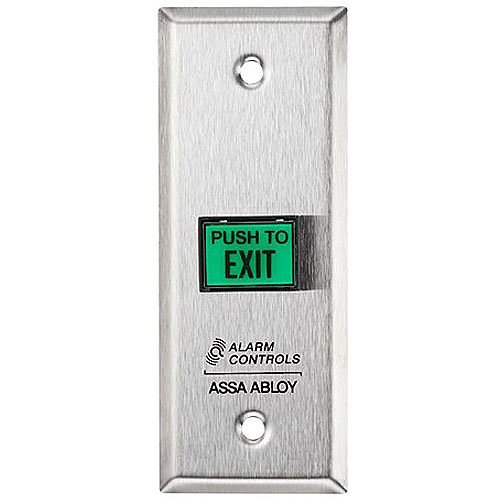

– **TS-9**: Switch mounted on a narrow 1-3/4″ wall plate featuring a 302 stainless steel finish.
– Green rectangular push button (5/8″ x 7/8″) with high-brightness LED illumination.
– Button clearly labeled “PUSH TO EXIT” for straightforward egress instruction.
– Momentary DPDT action switch for versatile use.
**Options**
– **TS-7, TS-9L**: Available with latching action switches.
– **TS-7T, TS-9T**: Equipped with a timed output, adjustable from 2 to 45 seconds.
– Variety of plate finish options.
– Custom legends available as bespoke parts.
### Specifications
**Certifications & Listings:** UL 294 listed for compliance and safety.
**Electrical Specifications:**
– DPDT timed contacts, rated at 3A for 35 VDC or 120 VAC.
– Timed output with SPDT contacts, rated at 2A for 35 VDC.
– Switch depth behind plate: 1-1/4″.
– Switch terminated with 10” colored leads for easy installation.
– LED operates on 12 or 24 VAC/VDC for flexibility.
**Operating Temperature:** Designed to operate in temperatures ranging from -13°F to +158°F (-25°C to 70°C).
