Brand: Adams Rite by ASSA ABLOY

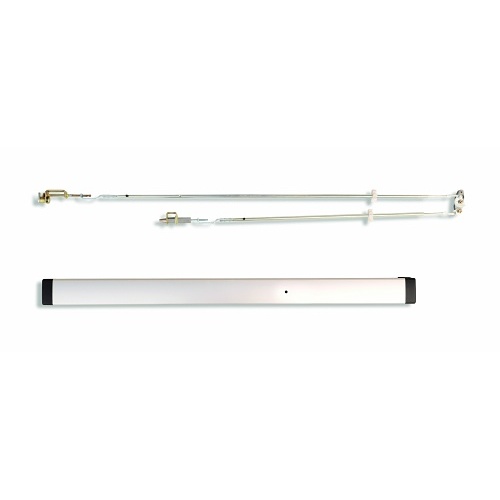

Adams Rite 8611-36 8611 8600 Series Life-Safety 36″ Narrow Stile Concealed Vertical Rod Exit Device, Clear Anodized

Name: Adams Rite 8611-36 8611 8600 Series Life-Safety 36" Narrow Stile Concealed Vertical Rod Exit Device, Clear Anodized
Brand: Adams Rite by ASSA ABLOY
SKU: 8611-36
Availability: InStock

in stock

Special Order

$481.52

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is specifically crafted for narrow stile aluminum door settings that demand a life-safety exit solution, incorporating concealed vertical rods for dual-point locking functionality.
Engineered for compatibility with both single door and double door applications in commercial environments.
Compatible Door Thickness: Standard 1-3/4" [44.5 mm], with options accommodating up to 2-1/4" [57.2 mm]. Devices require modification when utilized with cylinders on doors exceeding 1-3/4" [44.5 mm].
Door Height Compatibility: Standard design accommodates door heights up to 66" [1,676.4 mm] beyond the selected bar height.
The Push bar is fabricated from extruded aluminum, available in a range of clad or anodized finishes to suit diverse aesthetic and functional requirements.
Push Bar Length: 48" for optimal coverage and accessibility.
Constructed with high-quality extruded aluminum to ensure durability and compliance with industry standards.
Standard configuration effectively serves doors with a height limit of 66".
Bars of standard width can be modified on-site to fit narrower openings, enhancing installation versatility.

SKU: 8611-36 Categories: Access Control, Egress Devices, Exit Door Bars Brand: Adams Rite by ASSA ABLOY

Description

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is tailored for narrow stile aluminum settings requiring a life-safety exit solution featuring concealed vertical rods for secure two-point locking. This exit device is suitable for both single door and double door applications.

General Information
Brand Name	Adams Rite by ASSA ABLOY
Manufacturer	ASSA ABLOY
Manufacturer Part Number	8611-36
Product Model	8611
Product Name	8600 Electromechanical Exit Bar
Product Series	8600
Product Type	Electromechanical Exit Bar

Miscellaneous
Features	Alarm

Physical Characteristics
Material	Aluminum

Product Information
Finishing	Clear Anodized

Technical Information
Bar Length	36"
