Description

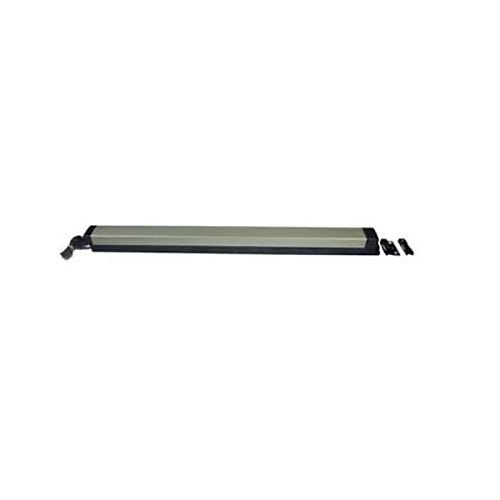

The 8800EL36-US32D-24 is a 24-volt life-safety narrow stile rim exit device in satin stainless, renowned for its high-security features. Part of the 8800 series exit devices, it integrates a patented “Starwheel” bolt mechanism that interlocks the door to the frame, ensuring robust and durable construction. Its sleek design promotes clean sight lines and facilitates effortless installation.
### Features
– ### Finish
– Pushbar with a satin stainless finish
– ### Dimensions
– Pushbar Length: 36 inches
– Accommodates Door Thickness: 1-3/4″ standard up to 2-1/4″
– Minimum Stile Width: 2″
– Projection: 2-5/8″ when fully extended, 1-5/8″ when dogged
– ### Design & Construction
– Non-handed operation with field-reversible lever entry trim
– Pushbar constructed from extruded aluminum, available in clad or anodized material
– Grade 1 strength for exceptional durability
– Features a patented top latching mechanism for enhanced security
– Includes a strike made of hardened steel
– ### Additional Features
– Life safety with electric latch retraction
– Standard self-tapping screws for secure fastening
– Equipped with standard dogging using a hex key
– Starwheel bolt mechanism ensures the door securely locks to the frame, countering jamb spreading
– No monitoring switch feature
This exit device is designed for ease of installation while maintaining a high level of security with its unobtrusive design.
