Description

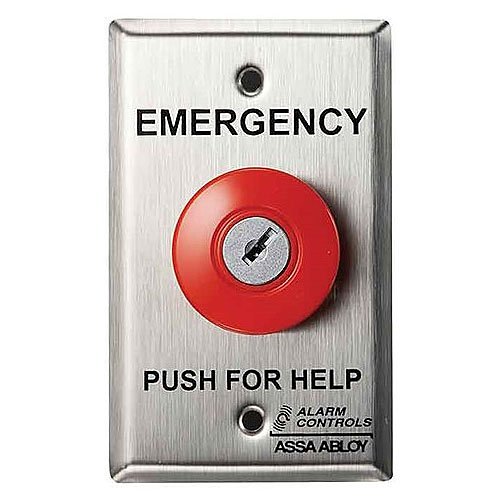

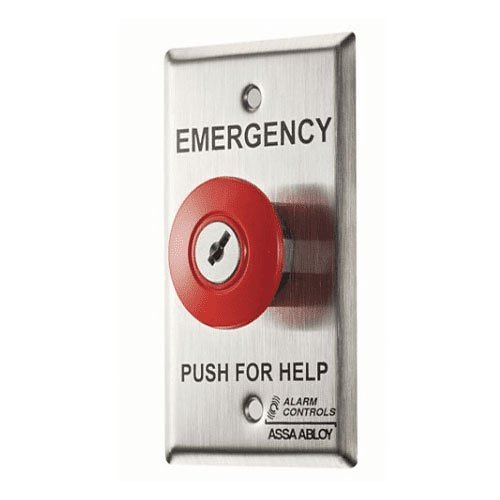

**Emergency Panic Station with Key Reset Mechanism**
This single-gang emergency station features a latching mechanism that requires a key for reset. Ideal for installations needing an immediate human response during alarm situations, it offers a variety of contact configurations for compatibility with most security systems.
Features
Standard Features
- Single-gang stainless steel wall plate, designed to IP40 weather-resistance standards
- 1-1/2” red emergency mushroom button
- Clearly labeled with “EMERGENCY PUSH FOR HELP” for prompt assistance
- Alternate action switch for secure and reliable operation
Options
- Variety of plate finishes and widths available; specify requirements when ordering
- KR-1KEY replacement key for easy maintenance
Specifications
Certifications & Listings: Conforms to IP40 standards
Electrical:
- Configurable N/O and N/C contact pairs to suit various system integrations
- Contacts rated for 10A at 35 VDC or 120 VAC
- Reliable screw terminal connections
- Switch depth behind plate: 2” for compact installation
Operating Temperature: -13°F to +158°F (-25°C to 70°C)
