Description

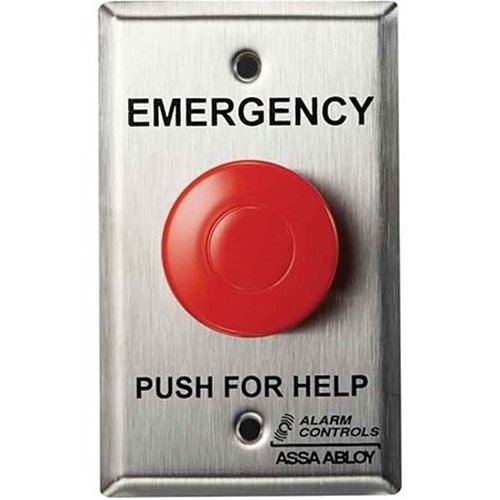

This single-gang panic station features a momentary push button switch that stays engaged while pressed, with various contact configurations to ensure seamless integration with most systems.
Features
Standard Features
- Single-gang stainless steel wall plate, IP65 weather-resistant
- 1-1/2″ red mushroom button
- Wall plate labeled “EMERGENCY PUSH FOR HELP” for immediate assistance
- Momentary action switch
Options
- Plate: available in multiple finishes and widths, specify upon ordering
- Illumination: long-lasting LED available in 6V, 12V, 24V, 120V, specify upon ordering
- GR Guard Ring
- LUC Lift up cover
Specifications
Certifications & Listings: Meets IP65 standards
Electrical:
- Offered in various combinations of N/O and/or N/C contact pairs, see specifications table.
- Contacts rated 10A at 35 VDC or 120 VAC
- Switch connection through screw terminals
- Switch depth behind plate: 2-1/2″
Operating Temperature: -13°F to +158°F (-25°C to 70°C)
