Description

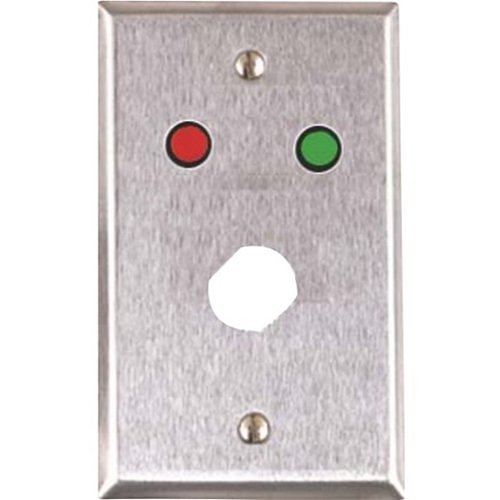

Single gang remote wall plate designed for integrated physical security systems, featuring a double “D” cutout compatible with Medeco locks and equipped with red and green LED status indicators.
Features
Standard Features
- Single gang wall plate constructed with a durable stainless steel finish
- Double “D” cutout for Medeco security lock installation
- 1/4” red and green LED indicators for status notification
Available Options
- KA-109, KA-110 key switch compatible with model RP-06
- Diverse range of plate finishes available to suit different applications
Technical Specifications
Dimensions: 2-3/4″W x 4 1/2″H
Electrical Specifications:
- LED current consumption: 8mA at 12VDC, 12mA at 24 VDC
- Equipped with 6” red and black wire leads
