Brand: Camden Door Controls

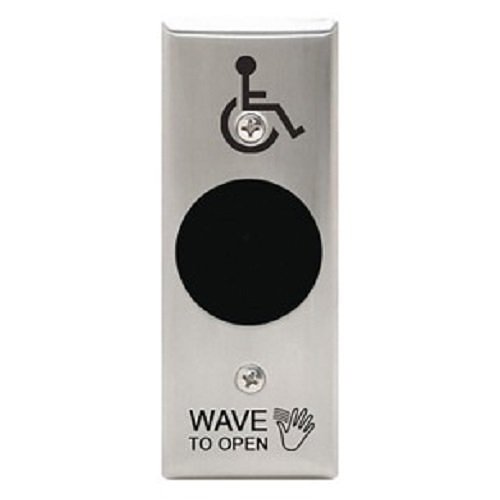

Camden CM-331/42N SureWave Wired Touchless Switch, Narrow, Hand Icon, Wave to Open Text and Wheelchair Symbol

Name: Camden CM-331/42N SureWave Wired Touchless Switch, Narrow, Hand Icon, Wave to Open Text and Wheelchair Symbol
Brand: Camden Door Controls
SKU: CM-331/42N
Availability: InStock

In Stock

Special Order

$150.82

Options available: Wired, Wireless, and Hybrid (wireless/wired) systems
Suitable for both Indoor and Outdoor use, with an operating temperature ranging from -4ºF to +153ºF (-20ºC to +85ºC). Includes a gasket in the package
Wireless models are battery-powered and offer a 2-year battery life using standard 'AA' alkaline batteries
Line-powered models support 12/24V AC/DC operation
Available in 1 and 2 relay wired configurations, featuring SPDT, Form 'C'
Offers narrow (jamb), single, and double gang faceplates
Faceplates available in black polycarbonate and stainless steel options
Utilizes advanced active infrared technology for fast response
Equipped with heavy-duty 3 or 5 Amp rated relays
Adjustable operating range up to 28 inches, with model-specific specifications

SKU: CM-331/42N Categories: Access Control, Egress Devices, Request to Exit Devices Brand: Camden Door Controls

Description

The SureWave™ series of touchless switches by Camden sets the benchmark in the industry for performance, quality, and value, offering an array of features unparalleled in the market. The CM-331 touchless switches deliver cutting-edge door activation and control while minimizing germ transmission. These powered touchless switches feature an adjustable operating range, selectable motion sensing, multiple relay operating modes, hold-open timers, REX and door position inputs, as well as options for a light ring and wireless transmitter.

General Information
Brand Name	Camden Door Controls
Manufacturer	Camden Door Controls
Manufacturer Part Number	CM-331/42N
Product Line	SureWave
Product Model	CM-331/42N
Product Name	CM-331/42N Touch-free Button
Product Series	CM-331
Product Type	Touchless

Miscellaneous
ADA Compliant	Yes
Compatibility	CM-TX99 Wireless Transmitter
Environmental Certification	RoHS
Environmentally Friendly	Yes
Features	Infrared Receiver, Momentary On/Off Mode, Surface Mount, Time Delay
Package Contents	CM-331/42N Touch-free Button 2 x 'AA' Alkaline Batteries

Physical Characteristics
Application/Usage	Door, Indoor/Outdoor
Color	Black
Depth	5.3"
Durability	Heavy Duty
Height	2"
Material	PC
Product Color	Black
Weight (Approximate)	6.40 oz
Width	5.5"

Power Description
Input Voltage	12V DC, 24V DC

Product Information
Print/Message	Handicap Logo, Wave To Open

Technical Information
Gang Type	Single Gang

Warranty
Limited Warranty	3 Year
