- Available in wired, wireless, and hybrid (wired/wireless) configurations
- Suitable for both indoor and outdoor use, with an operating temperature range of -4ºF to +153ºF (-20ºC to +85ºC); gasket included
- CM-333 Series: Hybrid battery models deliver a 2-year battery life using standard 'AA' alkaline batteries
- CM-336 Series: Wireless models boast an industry-leading 4-year battery life with standard 'AA' alkaline batteries
- Line-powered models support 12/24V AC/DC operation
- Available in 1 and 2 relay configurations, SPDT, Form 'C'
- Compatible with narrow (jamb), single, and double gang faceplates
- Offered in polycarbonate (black) and stainless steel faceplates
- Utilizes advanced active infrared technology for rapid response
- Features heavy-duty relays rated at 3 or 5 Amps
The CM-336 Series represents the next generation of hands-free wireless switches, offering enhanced door activation capabilities for both new installations and retrofit projects in access control and automated door systems. These switches are powered by two AA alkaline batteries, with a recommendation for lithium batteries in environments below 0°C (32°F). Note: The CM-RX90 wireless receiver is necessary for operation.
| Environmental Conditions | |
| Maximum Operating Temperature | 153°F (67.2°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| General Information | |
| Brand Name | Camden Door Controls |
| Manufacturer | Camden Door Controls |
| Manufacturer Part Number | CM-336/42SW |
| Product Line | SureWave |
| Product Model | CM-336/42SW |

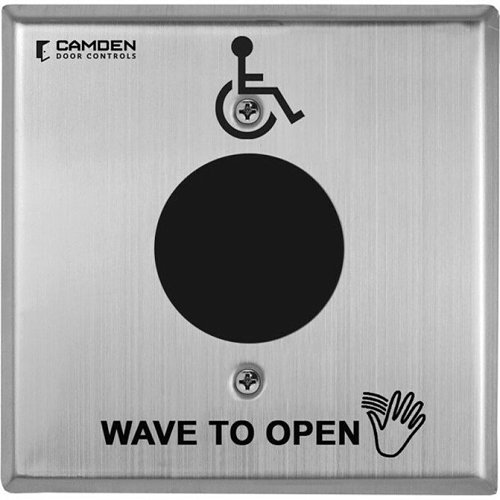

| Product Name | SureWave CM-336/42SW Touch-free Button |
| Product Series | CM-336 |
| Product Type | Wireless |
| Miscellaneous | |
| ADA Compliant | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Momentary On/Off Mode, Single Pole, Surface Mount |
| Package Contents | SureWave CM-336/42SW Touch-free Button Gasket |
| Physical Characteristics | |
| Application/Usage | Indoor/Outdoor |
| Color | Black |
| Material | PC |
| Power Description | |
| Input Voltage | 12V DC, 24V DC, 30V DC |
| Product Information | |
| Finishing | Stainless Steel |
| Print/Message | Handicap Logo, Wave To Open |
| Technical Information | |
| Gang Type | Single Gang |
| Maximum Timer Duration | 30-Second |
| Minimum Timer Duration | 3 Second |
