$116.35
- Offers power options with either battery or DC source
- Features a low-battery LED status indicator
- Includes wired communication capabilities
- Constructed with stainless steel and a vandal-resistant faceplate
- Provides a sensor detection range up to 4 inches for applications needing accurate activation
- Incorporates built-in obstruction detection technology
- Equipped with field-configurable bi-color (red/green) LED status indicators
- Allows selectable time delay from 1 to 10 seconds
- Features field-configurable on/off audible tones, adjustable via jumper

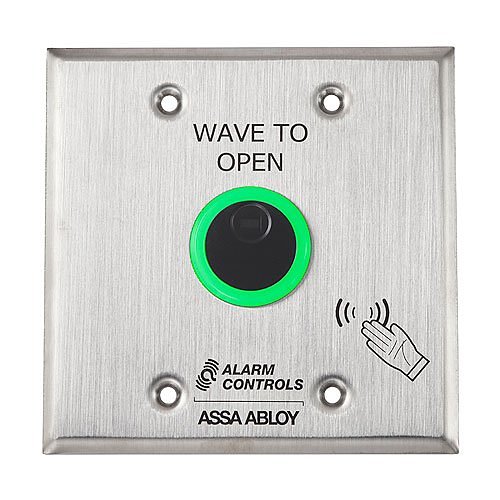

- Screened plate with "Wave To Open" marking
These request-to-exit solutions offer enhanced flexibility and control for sensitive security applications, eliminating the need for expensive modifications. They extend touchless access and egress conveniently and cost-effectively. The NTB Series serves as a direct replacement for traditional request-to-exit push buttons, enabling rapid upgrades of existing systems to code-compliant, touchless solutions using pre-existing wiring.
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -13°F (-25°C) |
| General Information | |
| Brand Name | Alarm Controls by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | NTB-2 |
| Product Model | NTB-2 |
| Product Name | NTB-2 Touch-free Button |
| Product Series | NTB |
| Product Type | Touch-free Button |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Double Pole Contact, LED Indicator, Time Delay, Wall Mount |
| Package Contents | NTB-2 Touch-free Button 2 x AA alkaline batteries |
| Physical Characteristics | |
| Application/Usage | Door |
| Color | Silver |
| Durability | Vandal Resistant |
| Material | Stainless Steel |
| Power Description | |
| Input Voltage | 30V DC |
| Product Information | |
| Print/Message | Wave To Open |
| Technical Information | |
| Gang Type | Double Gang |
| Maximum Proximity Range | 4" |
| Maximum Timer Duration | 10-Second |
| Minimum Timer Duration | 1 Second |
