Description

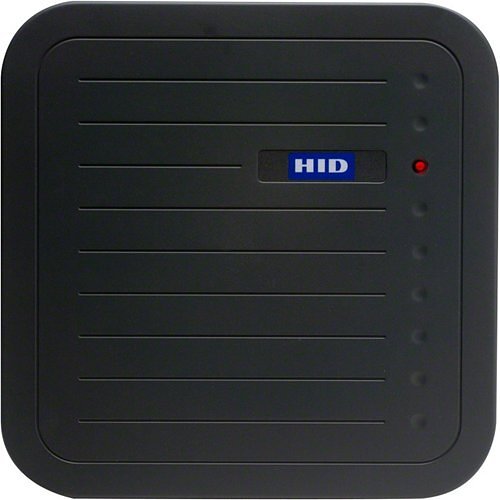

The HID MaxiProx® Reader is an excellent choice for parking control systems and applications that require extended read ranges. This reader integrates all electronics into a durable, visually appealing, and easy-to-install unit.
– **Extended Read Range**: Capable of reading distances up to 6 feet with ProxPass.
– **Advanced Autotune Feature**: Ensures the maintenance of read ranges within four inches even in proximity to metal surfaces.
– **Versatile Output Options**: Configurable to Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 formats.
– **Enhanced Vehicle Detection**: The “parking hold” function ensures precise vehicle detection in parking lanes.
– **Flexible Power Options**: Operates on 12 or 24 VDC, depending on the installation needs.
– **Power Consumption**: 200mA average / 700mA peak at 12VDC; 260mA average / 1.2A peak at 24VDC.
– **Physical Dimensions**: Measures 12.0″ x 12.0″ x 1.0″ (30.5 x 30.5 x 2.54 cm).
Additional Features:
– **Compatibility with HID Formats**: Supports all HID cards and tags, with formatting up to 85 bits.
– **Multicolor LED**: Allows internal or host-driven control of LED and beeper.
– **Dual Reader Setup**: Two MaxiProx units can function as a “HI-LO” installation, accommodating both trucks and cars.
– **Reader Supervision**: Provides signal support for CASI-RUSCO panels.
