Brand: HID Global

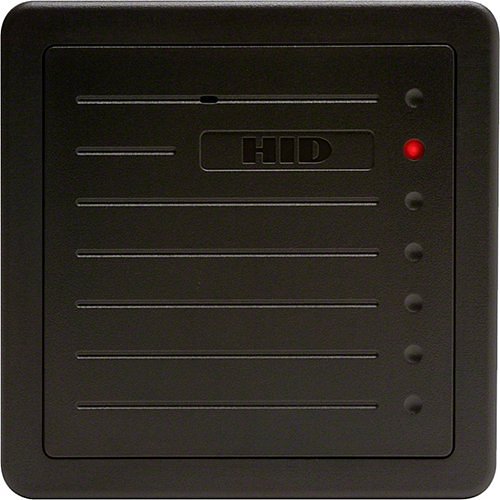

HID 5355AGN00 ProxPro 125 kHz Wall Switch Proximity Reader with Wiegand Output, Buffer One Key, No Parity, 4-Bit Message, Gray

Name: HID 5355AGN00 ProxPro 125 kHz Wall Switch Proximity Reader with Wiegand Output, Buffer One Key, No Parity, 4-Bit Message, Gray
Brand: HID Global
SKU: 5355AGN00
Availability: InStock

In Stock

MS | In Stock

$266.80

Optimal for medium-range security applications.
Compatible with Wiegand, Serial (RS-232/RS-422), or Clock-and-Data interfaces.
Designed for both indoor and outdoor environments, offering sealed protection.
Supports transmission of keypad and card data on the same cable or separately using 2 of 7 or 3 x 4 matrix configurations.
Combines high reliability, consistent read range performance, and low power consumption in a straightforward installation package.
Includes multicolor LED indicators, with optional internal or host control of the LED and beeper, featuring a beeper "off" switch for silent operation.
Ensures compatibility with all standard access control systems via the Wiegand protocol interface.
Features an optional integrated personal identification number keypad for enhanced security. Can be mounted on glass using an optional glass mounting kit.

SKU: 5355AGN00 Categories: Access Control, Keypads & Readers, Proximity Readers Brand: HID Global

Description

The ProxPro® proximity card reader features a weatherproof design and an architecturally appealing enclosure, making it easy to install both indoors and outdoors. This reader is perfect for access control applications that need an extended read range.

Certifications
TAA Compliant	No

General Information
Brand Name	HID Global
Manufacturer	HID Global Corporation
Manufacturer Part Number	5355AGN00
Product Line	ProxPro
Product Model	5355A
Product Name	125 kHz Wall Switch Proximity Reader
Product Series	5355
Product Type	Card Reader, Keypad Access Device

Miscellaneous
Environmental Certification	RoHS, WEEE
Environmentally Friendly	Yes
Indoor/Outdoor	Indoor, Outdoor

Physical Characteristics
Color	Gray
Depth	1"
Form Factor	Gang Box Mount
Height	5"
Product Color	Gray
Weight (Approximate)	9.63 oz
Width	5"

Technical Information
Connectivity Technology	Wired
Host Interface	Wiegand
Identification Method	Proximity
Maximum Operating Range	8"
Media Supported	Contactless

Warranty
Limited Warranty	Lifetime
