Brand: HID Global

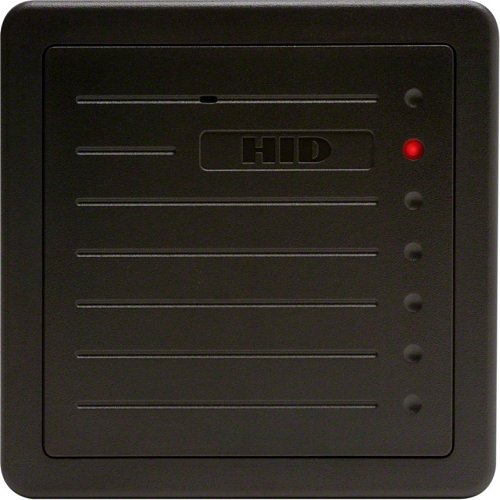

HID 5355A-302-02 Cover for ProxPro Reader, Charcoal Gray

Name: HID 5355A-302-02 Cover for ProxPro Reader, Charcoal Gray
Brand: HID Global
SKU: 5355A-302-02
Availability: InStock

in stock

In Stock

$31.97

Security - Equipped with a tamper switch for alerting any reader tampering attempts. Supports card formats up to 84 bits, offering over 137 billion unique code combinations.
Audiovisual Indication - When a proximity card is presented, the red LED turns green and the beeper sounds, providing clear feedback. The multicolor LED and beeper can be independently controlled by the host access system.
Diagnostics - An internal self-test routine on power-up verifies the setup configuration, checks LED and beeper control, and initializes operation. An external loop-back test allows verification of outputs and inputs without extra test equipment.
Indoor/Outdoor Design - Housed in a robust, weather-resistant polycarbonate enclosure, ideal for harsh conditions and ensuring reliable performance with high vandal resistance. Simple installation, even with the optional keypad feature.
Seamless Integration - Compatible with all existing Wiegand protocol access control systems, with data output available in Wiegand or Clock-and-Data format, plus optional RS232 and RS422 serial interfaces.
Customization Options - Includes keypad operation, custom labels, and a Glass Mount Kit (5455AGM00).

SKU: 5355A-302-02 Categories: Access Control, Keypads & Readers, Proximity Readers Brand: HID Global

Description

125 KHZ MULTIFUNCTION PROXIMITY CARD READER

The ProxPro® proximity card reader features a robust weatherproof design and an aesthetically pleasing enclosure, making it suitable for both indoor and outdoor access control installations, especially where an extended read range is required.

Offers exceptional reliability, consistent read range performance, and energy efficiency in a compact, straightforward installation package.
Equipped with a multicolor LED and supports internal or host management of the LED and beeper, with an option for silent mode.
Ensures compatibility with standard access control systems through Wiegand protocol interfacing.
Provides an optional integrated keypad for entering personal identification numbers, enhancing security measures.
Supports mounting on glass surfaces with the optional glass mounting kit.
For extended read range capabilities and cost efficiency, consider the ProxPro II Reader, featuring an additional inch (2.5 cm) of read range, operating on just 5 volts, and priced competitively.

General Information
Brand Name	HID Global
Manufacturer	HID Global Corporation
Manufacturer Part Number	5355A-302-02
Product Line	ProxPro
Product Model	5355
Product Name	ProxPro 5355 Card Reader Access Device (No Keypad)
Product Type	Card Reader, Keypad Access Device

Interfaces/Ports
Wiegand	Yes

Miscellaneous
Compatibility	ProxCard ISOProx DuoProx Smart ISOProx Smart DuoProx HID Proximity & MIFARE card ProxCard ProxKey MicroProx ProxPass
Environmental Certification	RoHS
Environmentally Friendly	Yes
Indoor/Outdoor	Indoor, Outdoor

Physical Characteristics
Application/Usage	Door, Indoor, Outdoor
Color	Gray
Depth	1"
Form Factor	Gang Box Mount
Height	5"
Width	5"

Power Description
Input Voltage	10V DC, 28.5V DC

Technical Information
Host Interface	Wiegand
Identification Method	Proximity
Operating Range	7.87"

Warranty
Limited Warranty	Lifetime
