Description

**HID GLOBAL’S PREMIER ACCESS CONTROL READERS**

**Extremely Adaptable**
Experience the ultimate flexibility with support for a diverse range of credential technologies, including HID Mobile Access® via integrated Bluetooth and Near Field Communication (NFC).

**Exceptional Performance**
Benefit from ultra-secure cryptographic key storage on certified secure element hardware, complemented by a new surface detection feature for automatic recalibration and optimized read range.

**Future-Ready Connectivity**
All readers come equipped with built-in support for the Open Supervised Device Protocol (OSDP), ensuring secure bidirectional communication.

HID Signo™ represents the pinnacle of physical access management solutions from HID Global. With superior versatility, unmatched performance, and future-proof connectivity, HID Signo sets a new standard in adaptable, interoperable, and secure electronic access control.

Delivering a comprehensive range of features, HID Signo provides security system installers and administrators with an easy and effective way to implement secure access control in nearly any environment.

Supporting a wide variety of credential technologies—past, present, and future—HID Signo is the ideal choice for those transitioning to advanced authentication solutions.

HID Signo readers redefine security by facilitating remote connectivity and management, eliminating the need for physical device interactions. This capability allows access control systems to swiftly adapt to emerging needs, configurations, or threats.

**ROBUST SECURITY**

– Multi-layered security framework ensuring data authenticity and privacy
– EAL5+ Certified Secure Element hardware
– Built-in OSDP secure channel functionality
– Trusted authentication with the SIO data model
– Compatible with iCLASS Elite™ and Corporate 1000 Programs

**VERSATILE AND ADAPTABLE TO ALL REQUIREMENTS**

– Embrace mobile capabilities with integrated Bluetooth and NFC
– Easy migration with built-in 125 kHz credential read support
– Supports over 15 popular credential technologies
– Offers flush mount terminal block and pigtail wiring configurations
– Durable outdoor performance with an IP65 rating

General Information
Brand NameHID Global
ManufacturerHID Global Corporation
Manufacturer Part Number20TKS-T1-000000
Product LineSigno
Product Model20TKS-T1-000000

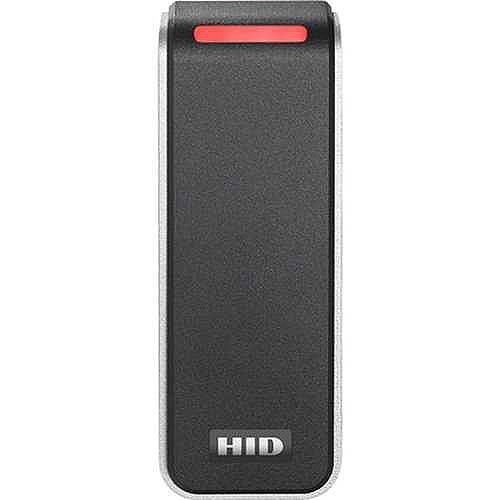

Product NameSigno 20 Card Reader Access Device
Product TypeCard Reader/Keypad Access Device

Interfaces/Ports
SerialYes
WiegandYes

Miscellaneous
Environmental CertificationGreenCircle, RoHS
Environmentally FriendlyYes
Indoor/OutdoorIndoor, Outdoor

Physical Characteristics
Application/UsageDoor, Indoor, Outdoor
ColorBlack
Depth0.77"
Form FactorMullion Mount, Surface Mount
Height4.78"
Weight (Approximate)2.65 oz
Width1.7"

Power Description
Input Voltage12V DC

Technical Information
BluetoothYes
Host InterfaceWiegand
Identification MethodProximity
Operating Range3.94"

Warranty
Limited WarrantyLifetime
