in stock
Special Order
$222.79
- Widely used wall switch format featuring an LED indicator for access approval or denial
- Configurable to function in either Wiegand or PAM mode
- Compatible with legacy card formats including iCLASS, iCLASS SE, and standard Prox
- Capable of reading any PIV-based card featuring an ISO14443 contactless interface with a Card Authentication Key (CAK) certificate.

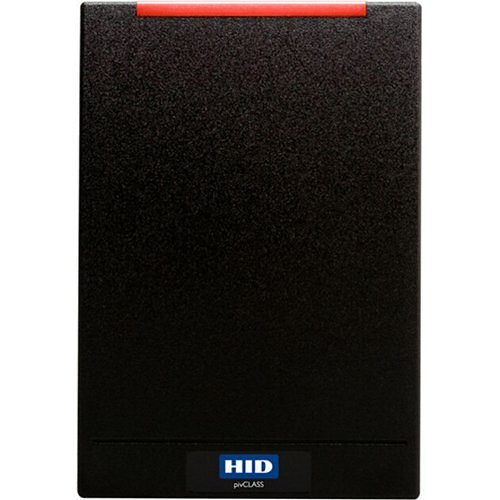

The iCLASS SE® R40 is an integral component of the iCLASS SE access control platform, offering adaptable and interoperable access control solutions. Designed specifically for door applications that require standard wall switch mounting, the iCLASS SE® R40 reader is compatible with a wide range of credential technologies and supports multiple form factors such as cards, key fobs, and mobile devices. Additionally, it can be configured to integrate with HID Mobile Access® solutions.
| General Information | |
| Brand Name | HID Global |
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 920NHRTEK0001T |
| Product Line | pivCLASS |
| Product Model | R40-H |
| Product Name | pivCLASS R40-H Smart Card Reader |
| Product Series | R40 |
| Product Type | Card Reader/Keypad Access Device |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | 8-Color LED and Audio Beeper, CAK Authentication, CHUID Authentication, NIST's Controlled Security, Supports Multiple Card Types |
| Indoor/Outdoor | Indoor, Outdoor |
| Physical Characteristics | |
| Color | Black |
| Depth | 1" |
| Height | 4.8" |
| Product Color | Black |
| Weight (Approximate) | 7.50 oz |
| Width | 3.3" |
| Technical Information | |
| Connectivity Technology | Wired |
| Host Interface | Wiegand |
| Identification Method | Proximity |
| Maximum Operating Range | 1.2" |
| Warranty | |
| Limited Warranty | Lifetime |
