Description

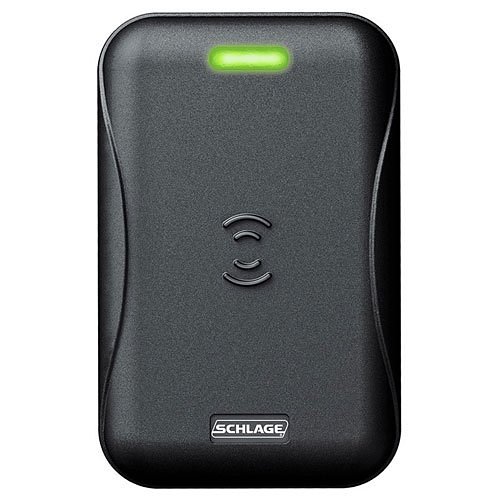

Schlage MT15 Wall-Mounted Access Control Reader: Dual-Frequency Proximity and Smart Card Authentication
The Schlage MT15 multi-technology reader enhances access control systems by supporting both 125 kHz proximity and 13.56 MHz smart cards, offering a seamless transition from legacy card systems to more secure encrypted technologies. With five versatile models available, these readers accommodate a wide range of form factors such as cards, wristbands, fobs, and tags, all while supporting emerging technologies without the need for hardware upgrades.
Utilizing both Wiegand and RS-485 output options, these readers easily integrate with most access control panels. The MT15 reader is also compatible with NFC-enabled mobile devices, providing flexible and modern access solutions.
Key Features
– Designed for compatibility with NFC-enabled mobile devices
– Protected by a limited lifetime warranty
– Suitable for installation in various environments, including interior and exterior settings, as well as metal and non-metal surfaces
– Quick-connect cable ensures straightforward installation
– Includes an easy-to-install mounting bracket
– Available finishes: Standard black, cool-tone gray, cream, and warm-tone brown
Technical Specifications
– Dimensions (HWD): 5.1″ x 3.25″ x 0.76″
– Frequency Support: 13.56 MHz and 125 kHz
– Standard Default PIV Output: 75 bit†
– Compliant with ISO 14443A, 14443B, and 15693 standards
– Power Requirements: 5-16 VDC
– Wiring: 18 or 20 AWG 12 shielded wire, dependent on panel distance
– Read Range: Proximity – Up to 5” (12.7 cm); MIFARE – Up to 4” (10 cm); DESFire EV1 – Up to 2” (5.1 cm); PIV Credential – Up to 2.5” (6.5 cm)
– Operating Temperature Range: -40 to 158°F (-40 to 70°C)
– Structural Material: PBT Polymer
Enhance your access control solutions with Schlage MT15 readers, offering advanced technology for secure and flexible access management.
