Description
The Schlage® RC is a cutting-edge IP reader controller that integrates the patented Pure IP™ access control technology with Schlage’s advanced hardware, offering a cost-efficient all-in-one edge device. This device seamlessly connects to open PACS solutions and can be integrated into existing IT networks using a single PoE cable, streamlining installation and eliminating the need for separate power supplies at each door. The Schlage RC ensures real-time connectivity, featuring a local mode capability, and can be managed alongside Schlage NDE and LE wireless locks within the same access control system.

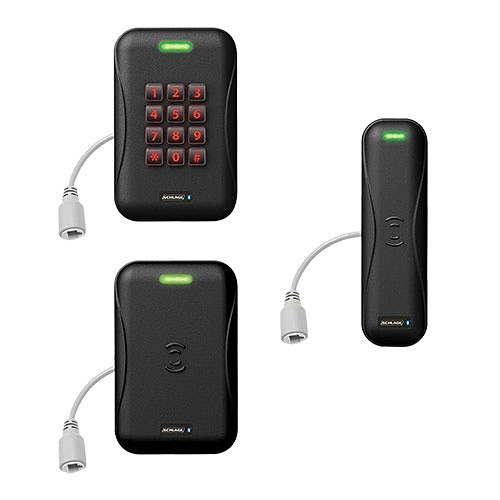

Available in three models to accommodate a variety of mounting options, the Schlage RC simplifies the installation process at any door location:
– **RC11**: Mullion-mount, multi-technology IP reader controller
– **RC15**: Single-gang mount, multi-technology IP reader controller
– **RCK15**: Single-gang mount, multi-technology IP reader controller with keypad
The Schlage RC reader controllers boast a sleek design and advanced functionalities, supporting Bluetooth, NFC (Near Field Communication), smart credentials (13.56 MHz), and standard proximity credentials (125 kHz). This enables users to customize their migration pathway to more secure credential formats.
**Features and Benefits**
The Schlage RC is equipped with 125 kHz proximity, 13.56 MHz smart, and 2.4 GHz Bluetooth technologies, allowing for simultaneous processing of multiple formats. Key benefits include:
– Real-time connectivity with a local mode feature, allowing operation even without network connectivity, resulting in quicker user response, decreased network load, and diminished host system demand.
– Integrated tamper detection via an accelerometer that identifies any unauthorized alterations, preventing potential security breaches.
– Secure communication through industry-standard TLS 1.2 encryption.
– Supports network communication speeds of 10 or 100 Mbps, offering both half and full duplex options.
– Easy configuration via the ENGAGE™ mobile app.
– Three configurable inputs: Door Position (DPS), Request to Exit (REX), and Auxiliary (AUX).
– Available in mullion, wall mount, and wall mount with keypad configurations.
– Reader controllers are compatible with 125 kHz proximity, 13.56 MHz smart technology, 2.4 GHz Bluetooth, and NFC.
– Credential parity standard with Schlage MTB mobile-enabled multi-technology readers and Schlage mobile-enabled wireless locks; an ISONAS credential parity is available as a factory-orderable option.
– Suitable for installation in interior, exterior, metal, and non-metal environments.
– **RC11**: Mullion-mount, multi-technology IP reader controller
– **RC15**: Single-gang mount, multi-technology IP reader controller
– **RCK15**: Single-gang mount, multi-technology IP reader controller with keypad
