Description

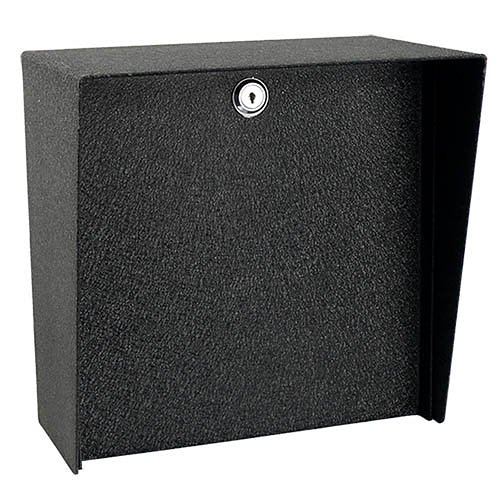

Optimize the security and installation of your access control systems with our 10″ x 10″ Square Black Steel Housing. This robust enclosure is ideal for positioning multiple access control devices such as card readers, intercoms, keypads, cameras, and control switches at pedestrian or vehicular access points. Widely used in parking areas, security systems, and gated entry applications, this housing offers extensive configurability to accommodate diverse equipment combinations.
When selecting a housing, consider the 1.75” clearance from the top of the housing to the cam lock’s base. For the integration of flush mount devices, ensure the retention of a .5” margin on the left, right, and bottom of the door panel, preserving door jams and the weather seals they contain.
Designed for outdoor deployment, this card reader enclosure includes a 3.0” deep back box suitable for most flush-mounted devices. Every unit is treated with a rust inhibitor and powder-coated at 400°F with outdoor, polyester TGIC UV-protected powder coat finish. This creates a robust layer, protecting against scratches, rust, and UV effects.

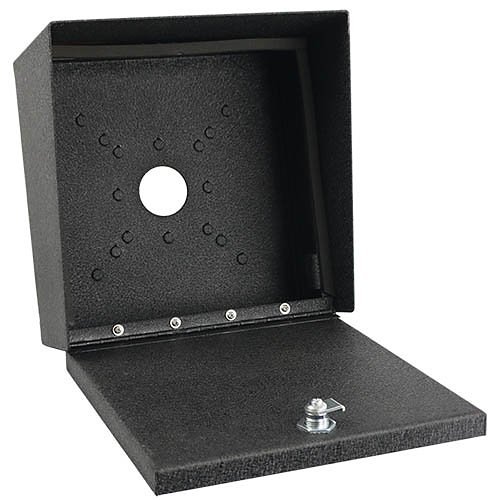

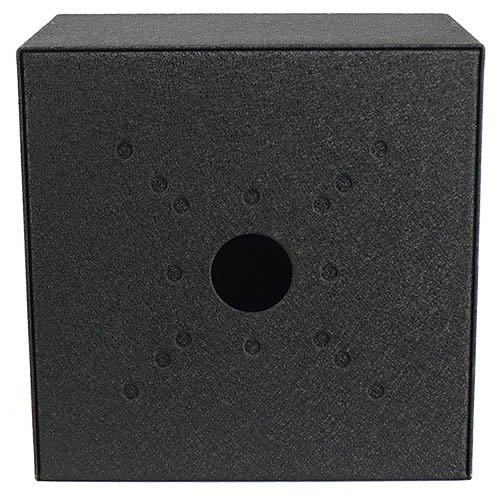

Equipped with a weatherproof zinc-plated cam lock, a weather-tight door panel sealed with 3/8” weather stripping, and a 3.5” deep weather canopy, this enclosure safeguards your access control devices from the elements. The housing features 12 knockouts for versatile mounting on any gooseneck pedestal, bollard, or wall, along with a centered 1.8” diameter hole for seamless conduit access. The door panel is easily removable from the inside, constructed from 16-gauge steel designed for easy customization for flush mount electronics.
The sleek black finish completes the unit, which arrives fully assembled with a cam lock and key, featuring a removable door panel and a corrosion-resistant stainless steel hinge.
**Key Features:**
– Height: 10″
– Width: 10″
– Top Overhang: 3.5″, tapering to 1.75″ at the sidewall bottom
– Back Box Area: 3″ D
– Total Depth: 6.5″
– Finish: Black Wrinkle TGIC Outdoor Polyester Powder Coat
– Knockouts: 16, 0.25″ diameter
– Center Hole: 1.75″ diameter
– Material Thickness: 16 gauge
This comprehensive housing solution is tailored for the demanding requirements of modern access control and security systems, ensuring durable protection and flexible device integration.
