Description

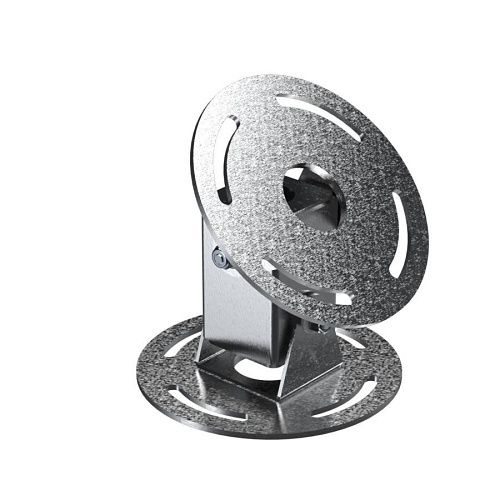

Introducing a robust, lightweight, and rigid multi-angle mounting solution, ideal for cameras, long-range readers, housings, and more. This innovative design offers a full 360-degree rotation when the locking bolts are loosened and secures its position upon tightening, providing installers with precise 360-degree x 180-degree mounting angles through two integrated rotating hinges. Suitable for mounting on pedestals, ceilings, walls, parapets, and various surfaces, it is constructed from 304 stainless steel with a durable black wrinkle polyester powder coating that includes UV inhibitors and rust prevention measures. The unique cable pass feature allows for secure wiring through its central “eye,” safeguarding the connectivity of cameras and card readers from vandalism and weather elements. This mount stands approximately 6 inches tall (positioned at 45 degrees) with 5.5-inch wide faceplates. It includes 1.75-inch mounting slots to fit 0.25-inch carriage bolts on a 4.33-inch diameter circle, enabling direct installation on existing housing and pedestal structures. Rigorous testing confirms the Omni-Mount can endure loads exceeding 100 lbs. in compression and tension both longitudinally and transversely to a flat mounting surface, with an optimal load capacity of up to 50 lbs.
