Description

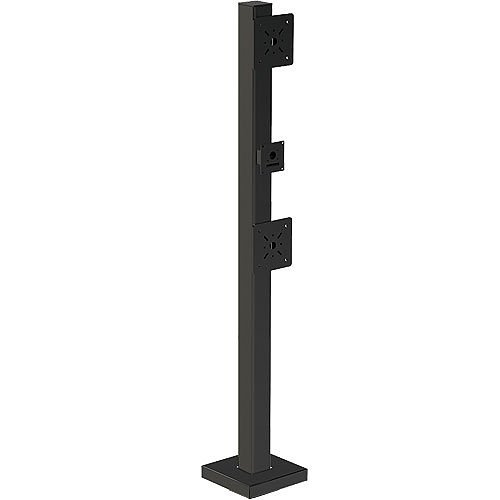

The HD-78-4-TSP is a robust, black wrinkle powder-coated pedestal made from high-quality steel. Designed for specialized applications, this heavy-duty structure features a unique triple-headed style. It stands 77.38 inches tall with a 4″ x 4″ square vertical tube for the main post and incorporates 4″ x 4″ and 3″ x 3″ square tubes for horizontal arms. The pedestal includes two 8″ x 8″ face plates (located at the top and bottom) and a central 4.75″ x 4.75″ face plate. Each of the three arms extends 4.15 inches from the center of the vertical post to the front of the face plates, with arm heights at 72.25″, 54.25″, and 40.25″ from the ground. Its sturdy base plate, .25 inches thick, measures 12″ x 12″ with .770″ holes spaced on 10″ centers.
**Features:**
– Height: 77.25″
– Finish: Black Wrinkle TGIC Outdoor Polyester Powder Coat
– Face Plates: Two 8″ x 8″, one 4.75″ x 4.75″
– Base Plate: 12″ x 12″, Holes on 10″ Centers, 0.25″ Cold Rolled Steel (CRS)
– Tubes: 4″ x 4″ Square with .187″ Wall Thickness
– Neck Reach: 4.15″ from Vertical Center
– Material: Heavy Gauge Steel
– Included Hardware: Each face plate comes with one polybag containing four 1/4-20 carriage bolts and nuts
