Description
The PDS8CB dual-input power distribution module is engineered to manage power from two low voltage AC or DC sources. It effectively distributes this power across eight outputs, each protected by a PTC circuit.

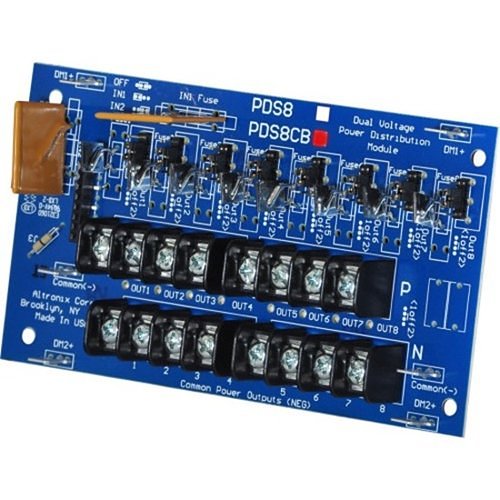

Altronix PDS8CB Dual-Input Power Distribution Module, PTC Outputs
in stock
In Stock
$43.62
- Provides eight (8) PTC-protected power outputs selectable to follow Power Input 1 or Power Input 2.
- Equipped with individual voltage indicators displaying 12V DC (Green) or 24V DC (Red and Green).
- Includes surge suppression features for enhanced safety.
- Each PTC-protected output is rated at 2A, Class 2 power-limited, with a maximum total output of 16A.
- Supports daisy-chaining of multiple units to expand capacity for larger systems.
SKU:
PDS8CB
Categories: Batteries & Power Supplies, Power Distribution Modules, Power Management
Brand: Altronix
| Certifications | |
| NDAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | PDS8CB |
| Packaged Quantity | 1 |
| Product Model | PDS8CB |
| Product Name | Dual Input Power Distribution Module, 8 PTC Outputs |
| Product Type | Power Module |
| Physical Characteristics | |
| Color | Green, Red |
| Depth | 5.4" |
| Height | 3" |
| Weight (Approximate) | 6.40 oz |
| Width | 1" |
| Power Description | |
| Input Voltage | 12V DC, 16V AC, 28V AC, 5V DC |
| Warranty | |
| Limited Warranty | Lifetime |
