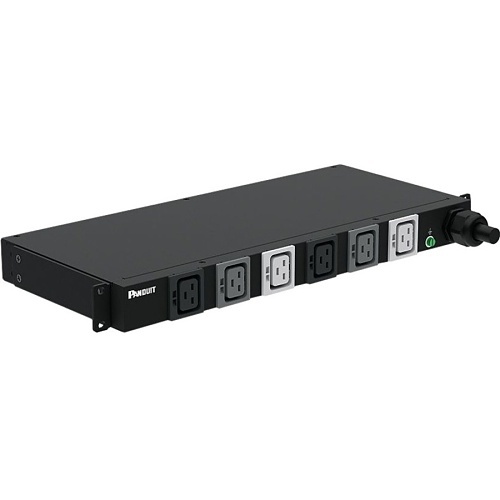

Panduit P06B50M Basic PDU30A6 C19NEMA L21-30P-3 Power Distribution Unit

Name: Panduit P06B50M Basic PDU30A6 C19NEMA L21-30P-3 Power Distribution Unit
SKU: P06B50M
Availability: InStock

In Stock

Special Order

$696.44

Outlet Density: Designed for high-density IT equipment configurations within rack or cabinet environments
Form Factor: Compact form factor optimizes space, enhancing efficient use of rack space
Operating Temperature: Tolerates ambient temperatures up to 60 °C at full load, ensuring operational reliability
Cable Retention: Innovative outlets with cable tie compatibility ensure secure cord retention (C13 & C19 only), enhancing safety and security
Circuit Breakers: Safeguard data center equipment by interrupting hazardous over-current conditions for increased system reliability
Color Coded Circuits: Facilitates easy phase identification for outlet banks, supporting fault isolation and load balancing efforts
Multiple Input Plug Options: Offers a wide range of plug configurations for seamless integration with existing building power infrastructures
Multiple Mounting Options: Offers straightforward, out-of-the-box installation with flexibility to integrate into various cabinet systems including standard industry setups
Mounting Buttons: Provides tool-less mounting for rack PDUs, expediting the installation process for vertical 0U units
External Chassis Ground: Complies with NEC requirements and installation standards for IT infrastructure

SKU: P06B50M Categories: Batteries & Power Supplies, Power Distribution Units, Power Management

Description

This 30A, 208V horizontal 3 Phase WYE Power Distribution Unit (PDU) features six C19 outlets and comes equipped with a 10-foot (3-meter) power cord that has a NEMA L21-30P plug. The unit measures 1.7 inches in height, 17.5 inches in width, and 7.8 inches in depth (43.2 mm x 444.5 mm x 198.1 mm). It is UL Listed and available in black.

General Information
Brand Name	Panduit
Manufacturer	PANDUIT CORP
Manufacturer Part Number	P06B50M
Packaged Quantity	1
Product Model	P06B50M
Product Name	P06B50M Horizontal Basic Power Distribution Unit
Product Type	PDU

Miscellaneous
Environmentally Friendly	Yes

Physical Characteristics
Color	Black
Depth	7.8"
Height	1.7"
Mounting Orientation	Horizontal
Rack Height	1U
Width	17.5"

Power Description
Input Current	30 A
Input Voltage	230V AC
Plug/Connector Type	NEMA L21-30P

Product Information
Mount Type	Rack Mount

Technical Information
Output Voltage	230V AC
PDU Type	Basic
Phase	Three Phase
Receptacle Detail	6 x IEC 60320 C19
Receptacle Type	IEC 60320 C19
