Description

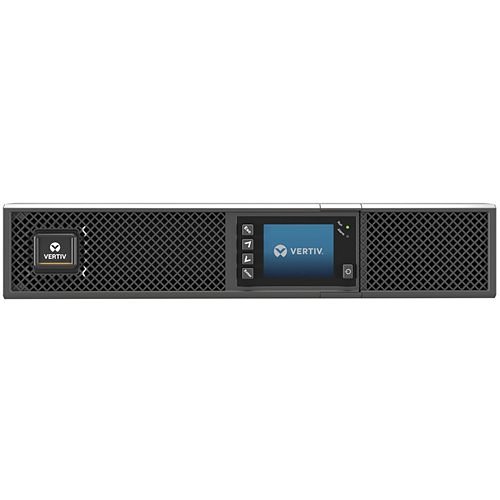

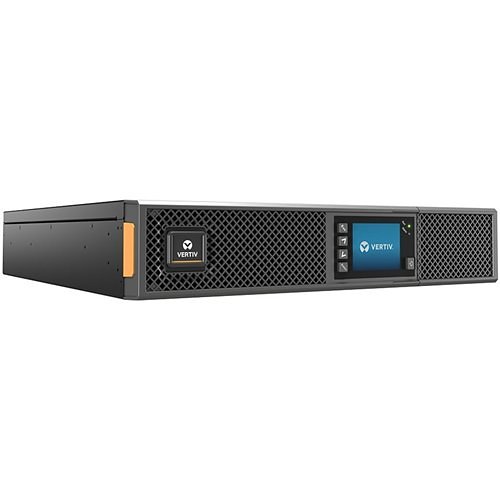

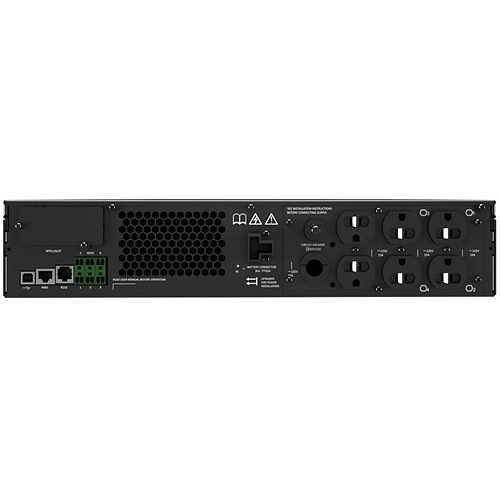

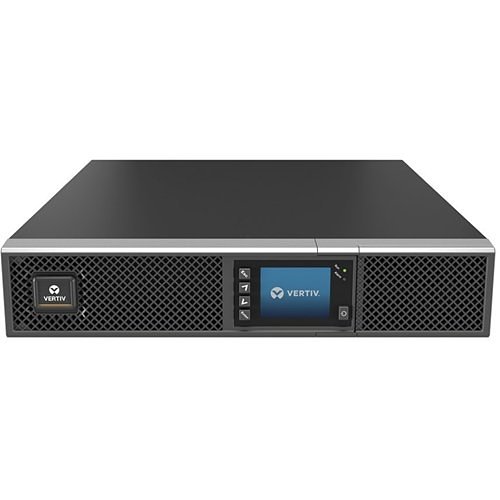

The Vertiv Liebert GXT5 UPS is a highly efficient power protection solution designed for IT infrastructure, boasting a capacity of 1500VA/1350W in a compact 2U form. Utilizing online double conversion technology, this UPS safeguards critical equipment from power outages and disturbances without depleting battery reserves, thus prolonging battery life and reducing replacements. It accommodates various power environments, supporting 110/115/120/125V AC, and offers scalable runtime options through compatible external battery cabinets, providing extended backup during outages.

The UPS features a design with hot-swappable batteries and includes all necessary hardware for rack or tower installation. This single-phase UPS is ENERGY STARĀ® 2.0 certified, ensuring excellent normal mode power efficiency and Eco-mode for optimal energy savings. The unit comes with a rack mounting hardware kit and a base for tower setups in open environments and includes a three-year factory warranty. The Vertiv Liebert GXT5 delivers superior power protection for critical infrastructure across centralized and edge applications.

Battery Information
Battery CharacteristicsValve-regulated, Non-spillable
Battery ChemistrySealed Lead Acid (SLA)
Battery Life5 Year
Number of External Battery Cabinets1
Typical Battery Recharge Time3-Hour

Certifications
Energy StarYes
TAA CompliantNo

Controls/Indicators
Status IndicatorsColor LCD

Environmental Conditions
Environmental SensorsHumidity Sensor, Leak Detection Sensor, Temperature Sensor
Maximum Operating Elevation9842.52 ft
Maximum Operating Temperature104°F (40°C)
Maximum Storage Elevation49212.60 ft

General Information
Brand NameVertiv
ManufacturerVertiv
Manufacturer Part NumberGXT5-1500LVRT2UXL
Product LineLiebert
Product NameGXT5 1500VA 120V UPS
Product SeriesGXT5
Product TypeDual Conversion Online UPS

Interfaces/Ports
EPO PortYes
Serial PortYes

Miscellaneous
Environmental CertificationREACH, RoHS, RoHS 2, WEEE
Environmentally FriendlyYes
Package Contents GXT5 1500VA 120V UPS 4 Post Rack Mounting Tower Stand USB Cable User Guide Safety Instruction Manual

Physical Characteristics
Application/UsageIT Equipment, Mission Critical Equipment
ColorBlack
Depth18.5"
Form FactorRack/Tower
Height3.4"
Rack Height2U
Weight (Approximate)46.20 lb
Width16.9"

Power Description
Input Frequency70 Hz
Input Voltage120V AC
Input Voltage Range60 V AC - 150 V AC
Plug/Connector TypeNEMA 5-15P
User Selectable OutputTypical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
Utility (AC) Mode Overload >200% for 250ms 150- 200% for 2 seconds 125- 150% for 50 seconds 105-125% for 60 seconds
Waveform TypePure Sine Wave

Software
Software IncludedFree Download - Power Insight 2.2

Technical Information
Battery Size12V
Hot SwappableYes
Number of Batteries3
Output Voltage120V AC
PhaseSingle Phase
Receptacle Detail6 x NEMA 5-15P
Receptacle TypeNEMA 5-15P
USB (HID Compliant) PortYes

Warranty
Limited Warranty3 Year
