Description

Enhance network power protection with intelligent and efficient solutions, ranging from entry-level options to scalable runtime capabilities. These UPS systems are perfect for safeguarding servers, point-of-sale systems, routers, switches, hubs, and various other network devices.

Smart-UPS™ are relied upon by IT professionals worldwide to shield equipment and critical data from costly disruptions by providing dependable, network-grade power. Available in multiple form factors and categories—entry-level, standard, and extended run—there’s a model suited for nearly every application and budget. Standard models are globally recognized as the most popular UPS for business servers, storage, and networking devices, setting the standard for reliability and manageability. Entry-level Smart-UPS models are a cost-effective solution for small to medium-sized businesses seeking to protect networking devices, point-of-sale (POS) systems, and entry-level servers. The extended run models can accommodate external battery packs, offering prolonged runtime to support vital servers, security, and communication systems during extended power outages.

Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Replaceable BatteryYes
Typical Battery Recharge Time3-Hour

Certifications
Energy StarYes

Controls/Indicators
Status IndicatorsLED Status Display: On Battery On Line

Environmental Conditions
Maximum Operating Elevation6561 ft
Maximum Operating Temperature104°F (40°C)
Maximum Storage Elevation49212 ft
Sound Emission45 dB(A)

General Information
Brand NameAPC by Schneider Electric
ManufacturerSchneider Electric SA
Manufacturer Part NumberSCL500RM1UNC
Packaged Quantity1 Each
Product LineSmart-UPS

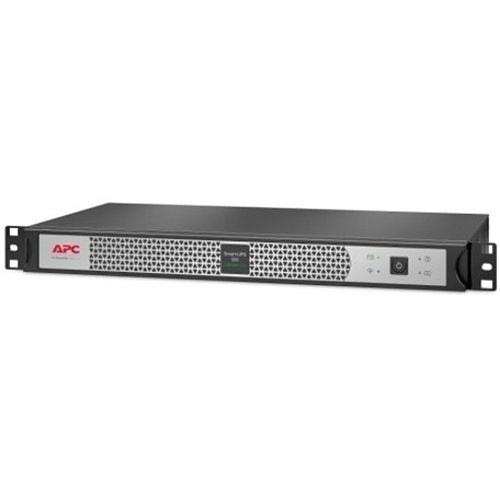

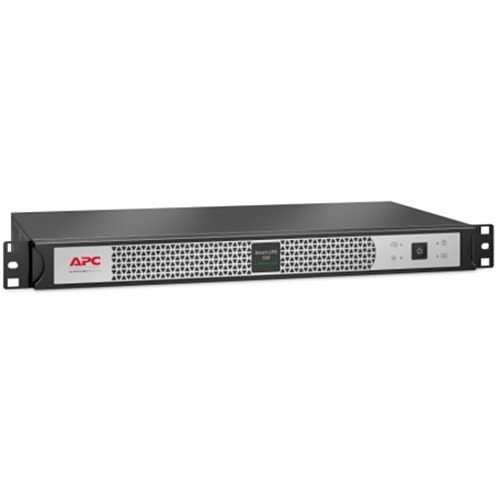

Product NameSmart-UPS 500VA Rack-mountable UPS
Product TypeLine-interactive UPS

Interfaces/Ports
Serial PortYes

Management
AlarmConfigurable Delay, Low Battery, On Battery

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Package ContentsSmart-UPS 500VA Rack-mountable UPS CD with softwareDocumentation CDInstallation guideRack mounting support railsUSB cable

Physical Characteristics
Application/UsageBusiness, Communication System, Critical System, IT Equipment, Network Device, Network Hub, POS Terminal, Router, Security System, Server, Storage System, Switch
ColorBlack, Silver
Color FamilyDual Color
Depth9.1"
Form FactorRack Mount
Height1.7"
Product ColorBlack, Silver
Rack Height1U
Weight (Approximate)9.30 lb
Width17"

Power Description
Input Frequency63 Hz
Input Voltage120V AC
Output Frequency60 Hz
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating680 J
Waveform TypeSine Wave

Software
Software IncludedPowerchute Business Edition

Technical Information
AVRYes
Hot SwappableYes
Number of Battery & Surge Outlets4
Output Voltage12V DC, 24V DC
Overload ProtectionYes

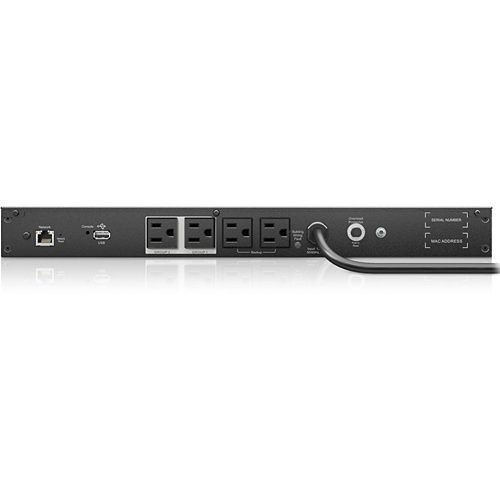

Receptacle Detail4 x NEMA 5-15R
Receptacle TypeNEMA 5-15R
Transfer Time6 ms
USB (HID Compliant) PortYes

Warranty
Additional Warranty Information5 year repair or replace
Limited Warranty5-year
