Description

Over 20 million units shipped worldwide – the trusted UPS solution
The award-winning APC Smart-UPSĀ® stands as the top choice for Uninterruptible Power Supplies in the server, storage, and network sectors. Known for guarding essential data and infrastructure against power disruptions, it delivers clean, network-grade power consistently. Smart-UPS models offer renowned reliability and manageability, alongside superior efficiency across low, medium, and high load levels, making them perfect for today’s diverse workloads on multi-core and virtualized servers.

Available in multiple configurations, such as tower, rack mount, and rack/tower convertible, there’s an option for every requirement and budget. Rack-mounted Smart-UPS units excel in delivering power to blade servers or high-density environments, providing either primary or redundant power protection in distributed setups. These models are renowned in the industry as the standard for all network and server UPS solutions. Features include a 16-segment LED display, extended range automatic voltage regulation (AVR), and a pure sine wave output when on battery power. Enhanced management is achievable via the Smart-Slot interface, which accommodates optional accessory cards. The Smart-UPS XL models are equipped to extend runtime with external battery packs, supporting converged voice and data networks from minutes to hours. For smaller applications, the entry-level Smart-UPS SC is a cost-effective solution for small and medium businesses to protect network switches, devices, and point-of-sale (POS) systems.

Battery Information
Battery CharacteristicsMaintenance-free, Sealed
Battery ChemistryLead Acid
Typical Battery Recharge Time3-Hour

General Information
Brand NameAPC by Schneider Electric
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMT2200R2X106
Product LineSmart-UPS

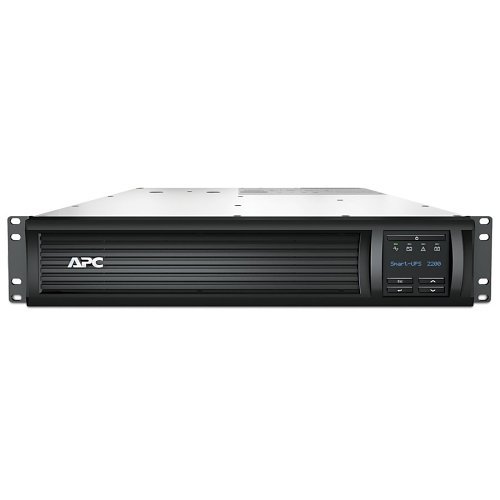

Product NameSmart-UPS 2200VA LCD RM 2U 120V with L5-20P
Product TypeLine-interactive UPS

Interfaces/Ports
Serial PortYes

Miscellaneous
Environmental CertificationREACH, RoHS
Environmentally FriendlyYes
Package ContentsSmart-UPS 2200VA LCD RM 2U 120V with L5-20P CD with softwareDocumentation CDRack mounting bracketsRack mounting support railsSmart UPS signalling RS-232 cableUSB cable

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth26.9"
Form FactorRack Mount
Height3.4"
Product ColorBlack
Rack Height2U
Weight (Approximate)93.08 lb
Width18.9"

Power Description
Input Voltage110V AC
Plug/Connector TypeNEMA L5-20P
Surge Energy Rating530 J
Waveform TypeSine Wave

Software
Software IncludedPowerchute Serial Edition

Technical Information
Number of Battery & Surge Outlets8
Output Voltage120V AC

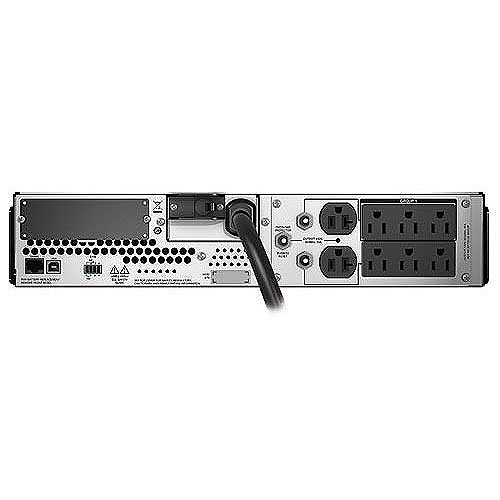

Receptacle Detail2 x NEMA 5-20R, 6 x NEMA 5-15R
Receptacle TypeNEMA 5-15R, NEMA 5-20R

Warranty
Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
Limited Warranty3-Year
