Description

**Over 20 Million Units Sold – The UPS You Can Trust**

The APC Smart-UPS® stands out as the leading uninterruptible power supply (UPS) for servers, storage, and network systems globally. This award-winning solution is relied upon to protect critical data and equipment from power issues by delivering consistent and reliable network-grade power. Known for its exceptional reliability and easy manageability, Smart-UPS offers high efficiency even at varying load levels, making it perfect for modern multi-core and virtualized servers with dynamic load demands.

Available in an array of form factors—tower, rack mount, and rack/tower convertible—there is a Smart-UPS model suited to every application need and budget. Rack-mounted Smart-UPS models are particularly suitable for powering Blade or density-optimized servers in environments requiring distributed power protection, whether as primary or redundant solutions. Recognized as the industry benchmark for network and server UPS systems, Smart-UPS features a 16-segment LED display, extended range automatic voltage regulation (AVR), and a pure sine wave output when on battery.

Enhanced manageability is achieved through the Smart-Slot interface, an internal slot designed for the installation of optional accessory cards. The Smart-UPS XL model offers extended runtime capabilities by enabling the connection of external battery packs, making it ideal for supporting converged voice and data networks over extended periods. For small and medium businesses, the entry-level Smart-UPS SC model is a cost-effective solution for protecting small networking devices, switches, and point-of-sale (POS) systems.

Battery Information
Battery CharacteristicsSpill-proof, Maintenance-free
Battery ChemistryLead Acid
Typical Battery Recharge Time3-Hour

Certifications
Energy StarYes

General Information
Brand NameAPC by Schneider Electric
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMT2200RMUS
Product LineSmart-UPS

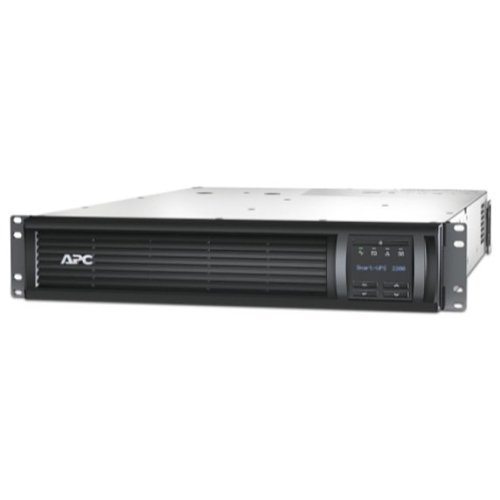

Product NameSmart-UPS 2200VA LCD RM 2U 120V US
Product TypeLine-interactive UPS

Miscellaneous
Environmental CertificationREACH, RoHS
Environmentally FriendlyYes
Package ContentsSmart-UPS 2200VA LCD RM 2U 120V US CD with softwareDocumentation CDRack mounting bracketsRack mounting support railsSmart UPS signalling RS-232 cableUSB cable

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth26.9"
Form FactorRack Mount
Height3.5"
Product ColorBlack
Rack Height2U
Weight (Approximate)93.28 lb
Width18.9"

Power Description
Input Voltage110V AC
Plug/Connector TypeNEMA 5-20P
Surge Energy Rating530 J
Waveform TypeSine Wave

Software
Software IncludedPowerchute Serial Edition

Technical Information
Hot SwappableYes
Number of Battery & Surge Outlets8
Output Voltage120V AC
Receptacle Detail2 x NEMA 5-20R, 6 x NEMA 5-15R
Receptacle TypeNEMA 5-15R, NEMA 5-20R

Warranty
Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
Limited Warranty3-Year
