Description

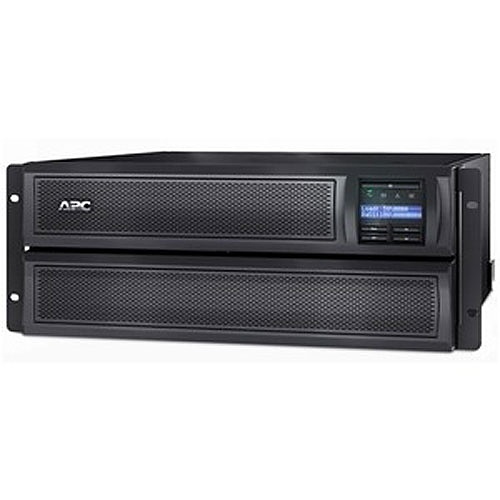

APC Smart-UPS X, Line Interactive Uninterruptible Power Supply, 2000VA Capacity, Rack/Tower Convertible 2U, 120V Output, NEMA Outlets (3x 5-15R, 3x 5-20R, 1x L5-20R), Integrated Network Card, Extended Runtime Option, TAA Compliant
APC SMX2KRMLVNCUS Smart-UPS 2000VA Rack/Tower LCD 120V with Network Card and SmartConnect Port
in stock
Special Order
$3,647.21
- Adjustable Voltage Sensitivity - Allows the uninterruptible power supply (UPS) to adapt for optimal performance in various power conditions or generator applications.
- Adjustable Voltage-Transfer Points - Extends battery life by broadening the input voltage range or refining the output voltage regulation.
- USB Communication - Facilitates communication with specific UPS models using established proprietary USB connections.
- Audible Alerts - Notifies users of changes in utility and UPS power conditions.
- External Battery Recognition - Automatically detects attached external battery packs and adjusts runtime accordingly.
- Automatic Restart of Loads - Powers up connected devices automatically when utility power is restored.
- Automatic Self-Test - Conducts regular battery self-tests to identify and address battery replacement needs early.
- Battery Failure Notification - Provides early warning of potential battery issues to enable timely preventive maintenance.
- Boost and Trim Automatic Voltage Regulation (AVR) - Enhances application availability by correcting voltage irregularities without relying on the battery (availability varies by model).
- Cold-Start Capable - Supplies temporary battery power during utility power outages.
SKU:
SMX2KRMLVNCUS
Categories: Batteries & Power Supplies, Power Management, UPS
Brand: APC by Schneider Electric
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3-Hour |
| Certifications | |
| Energy Star | Yes |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2KRMLVNCUS |
| Product Line | Smart-UPS |
| Product Model | SMX2KRMLVNCUS |
| Product Name | Smart-UPS SMX2KRMLVNCUS 1.92kVA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Package Contents | Smart-UPS SMX2KRMLVNCUS 1.92kVA Tower/Rack Mountable UPSCD with softwareDocumentation CDInstallation guideNetwork management cardRack mounting bracketsand more below, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable |
| Physical Characteristics | |
| Application/Usage | Network Device, Network Hub, POS Terminal, Router, Security System, Server, Storage Device, Switch |
| Color | Black |
| Color Family | Black |
| Depth | 26.26 " |
| Form Factor | Rack Mount |
| Height | 3.35" |
| Product Color | Black |
| Rack Height | 2U |
| Weight (Approximate) | 84.77 lb |
| Width | 17" |
| Power Description | |
| Input Voltage | 120V AC |
| Input Voltage Range | 70 V AC - 153 V AC |
| Plug/Connector Type | NEMA L5-30P |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Technical Information | |
| Number of Battery & Surge Outlets | 7 |
| Output Voltage | 120V AC |

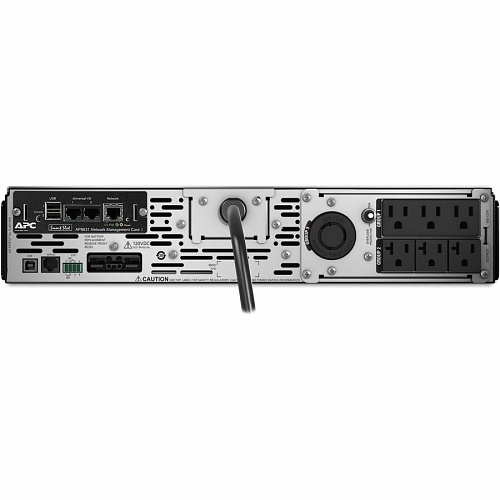

| Receptacle Detail | 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R |
| Receptacle Type | NEMA 5-15R, NEMA 5-20R, NEMA L5-20R |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Limited Warranty | 3-Year |
