Description

**Over 20 Million Units Sold – The Trusted UPS Solution**

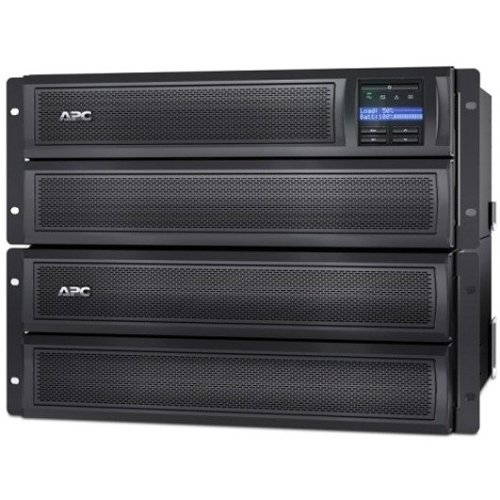

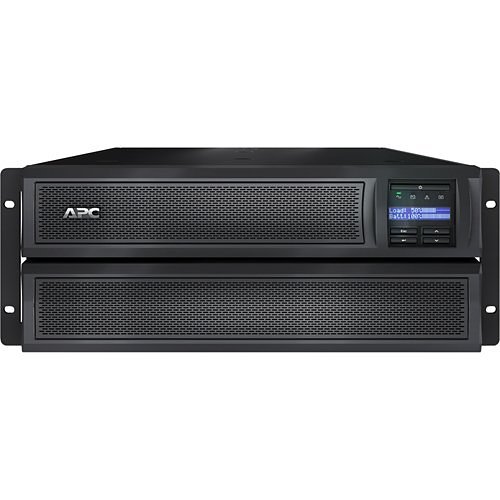

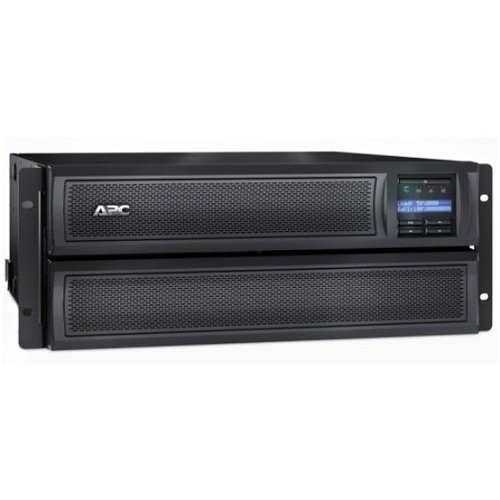

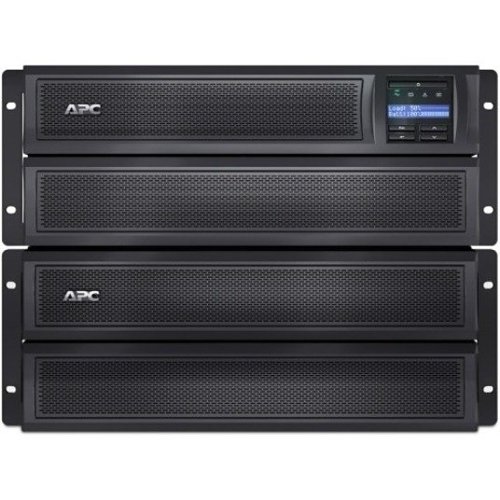

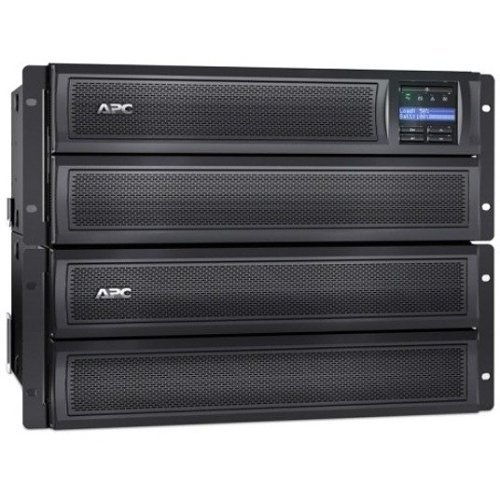

The award-winning Smart-UPS® by APC is the leading uninterruptible power supply (UPS) trusted globally for safeguarding servers, storage, and network infrastructures. Engineered to ensure the protection of critical data and equipment from power disturbances, it delivers clean, reliable network-grade power. Known for unmatched reliability and manageability, Smart-UPS offers exceptional efficiency across low, medium, and high load levels, making it excellent for modern multi-core or virtualized servers that present variable load demands. With flexible form factors, including tower, rack mount, and rack/tower convertible models, there’s a Smart-UPS to suit every application and budget. Rack-mounted Smart-UPS solutions are perfect for powering blade or high-density servers in distributed power protection setups, serving as either primary or redundant protection. Recognized as the industry benchmark for network and server UPS’s, Smart-UPS features a 16-segment LED display, extended range automatic voltage regulation (AVR), and delivers pure sine wave output when on battery. Enhanced manageability is available via the Smart-Slot interface, accommodating optional accessory cards. The Smart-UPS XL model offers extended runtime capabilities by allowing the addition of external battery packs, essential for sustaining converged voice and data network power protection over extended periods. For small to medium businesses, the entry-level Smart-UPS SC is a cost-effective solution for protecting small switches, networking devices, and point-of-sale (POS) equipment.

Battery Information
Battery CharacteristicsSpill-proof, Maintenance-free
Battery ChemistryLead Acid
Typical Battery Recharge Time3-Hour

General Information
Brand NameAPC by Schneider Electric
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMX3000LV
Product LineSmart-UPS
Product NameSmart-UPS X 3000VA Rack/Tower LCD 100-127V
Product TypeLine-interactive UPS

Miscellaneous
Environmental CertificationREACH, RoHS
Environmentally FriendlyYes
Package ContentsSmart-UPS X 3000VA Rack/Tower LCD 100-127VCD with softwareDocumentation CDInstallation guideRack mounting bracketsRack mounting hardwareand more below, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth19"
Form FactorRack Mount
Height17"
Product ColorBlack
Rack Height4U
Weight (Approximate)85.19 lb
Width7"

Power Description
Input Voltage110V AC
Plug/Connector TypeNEMA L5-30P
Surge Energy Rating540 J
Waveform TypeSine Wave

Software
Software IncludedPowerchute Serial Edition

Technical Information
Hot SwappableYes
Number of Batteries1
Number of Battery & Surge Outlets10
Output Voltage120V AC

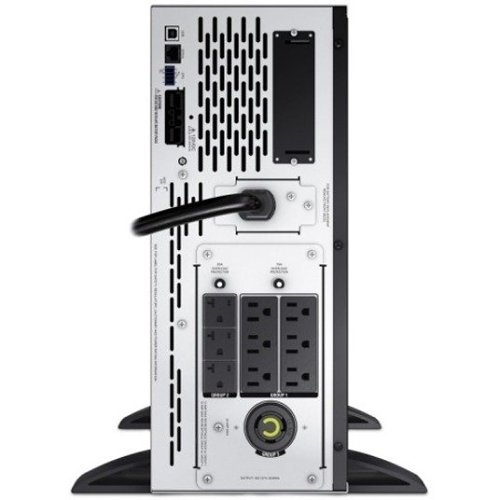

Receptacle Detail1 x NEMA L5-30R, 3 x NEMA 5-20R, 6 x NEMA 5-15R
Receptacle TypeNEMA 5-15R, NEMA 5-20R, NEMA L5-30R
Transfer Time4 ms

Warranty
Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
Limited Warranty3-Year
