Brand: Ditek

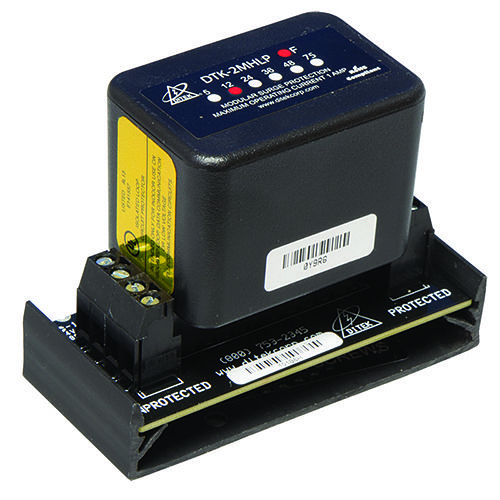

DITEK DTK-2MHLP12FWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base for 12V Circuits

Name: DITEK DTK-2MHLP12FWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base for 12V Circuits
Brand: Ditek
SKU: DTK-2MHLP12FWB
Availability: InStock

in stock

In Stock

$89.69

- Safeguards two 12V circuits per module
- Unique load isolation functionality
- Advanced multi-stage SAD technology with a hybrid architecture
- Offers exceptional protection
- Field-replaceable modular edge card connectivity
- Single-point grounding design for quick installation, maximizing efficiency
- Six voltage levels available to protect diverse voice/data applications
- Robust hard-wired multi-base mounting system

SKU: DTK-2MHLP12FWB Categories: Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules Brand: Ditek

Description

The DTK-2MHLP12FWB offers advanced surge protection solutions featuring exclusive load removal technology for two 12V security alarm system loop circuits.

Key Features

Safeguards two 12V pairs per module
Incorporates multi-stage Silicon Avalanche Diode (SAD) technology for optimal protection
Includes field-replaceable modules with a hard-wired multi-base mounting system, enabling the protection of up to ten pairs with a common ground

Certifications
NDAA Compliant	Yes
TAA Compliant	Yes

General Information
Brand Name	DITEK
Manufacturer	DITEK Corporation
Manufacturer Part Number	DTK-2MHLP12FWB
Product Model	DTK-2MHLP12FWB
Product Name	DTK-2MHLP12FWB Surge Suppressor
Product Series	2MHLP
Product Type	Surge Suppressor/Protector

Interfaces/Ports
Receptacles	Terminal Block

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Depth	3.3"
Height	2.6"
Weight (Approximate)	2.80 oz
Width	1.5"

Power Description
Input Voltage	12V DC

Technical Information
Dataline Protection	Datacommunication, Telecommunication

Warranty
Limited Warranty	10 Year
