Description
The DTK-2MHLP24F offers advanced surge protection for two 24V circuits, utilizing innovative load removal technology. Equipped with necessary snap-track bases, it safeguards up to 10 pairs with a shared grounding system.

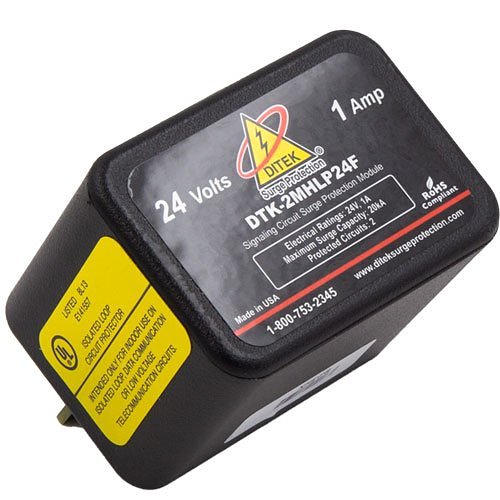

DITEK DTK-2MHLP24F Data and Signaling Circuit Surge Protection Module for 24V Circuits
in stock
In Stock
$78.60
- Safeguards two 24V pairs per module
- Unique load removal feature
- Advanced multi-stage, SAD technology with a hybrid design offers optimal protection
- Field-replaceable, modular edge card connection design with a single-point ground for quick installation, enhancing efficiency
- Offers six voltage levels to protect all voice and data applications
- Integrated hard-wired multi-base mounting system enables protection of up to ten pairs with a common ground (refer to next page for base part numbers)
- Compatible with both AC and DC circuits
- Single-point ground design for rapid
- Installation, enhancing efficiency
- Voice and data application protection
SKU:
DTK-2MHLP24F
Categories: Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
Brand: Ditek
| Certifications | |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| Manufacturer Part Number | DTK-2MHLP24F |
| Product Name | Signaling Circuit Modular Surge Protection |
| Product Series | 2MHLP |
| Product Type | Alarm Control Panel Surge Protector Module |
| Miscellaneous | |
| Compatibility | Circuits that operate at less than 1 Amp Fire Alarm Panel SLC, PIV and IDC Circuits Burglar Alarm Panel IDC Circuits 4-20mA Current Loops |
| Environmental Certification | RoHS |
| Features | Compact Design |
| Physical Characteristics | |
| Depth | 2.1" |
| Height | 1.9" |
| Product Material | ABS Plastic |
| Weight (Approximate) | 1.20 oz |
| Width | 1.4" |
| Power Description | |
| Input Voltage | 24V DC |
| Warranty | |
| Limited Warranty | 10 Year |
