Brand: Ditek

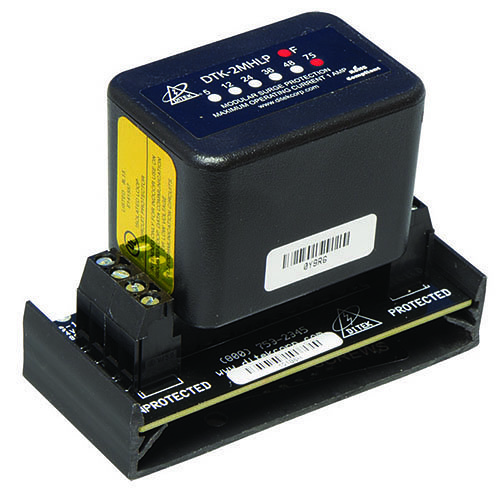

DITEK DTK-2MHLP75FWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base, 75V Circuits

Name: DITEK DTK-2MHLP75FWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base, 75V Circuits
Brand: Ditek
SKU: DTK-2MHLP75FWB
Availability: InStock

in stock

Special Order

$86.21

Shield two 75V pairs per module
Unique load disconnection feature
Multi-stage SAD technology in a hybrid design
delivers optimal protection
Field-replaceable, modular edge card connection
Design ensures single-point grounding for quick
installation, boosts efficiency
Available in six voltage levels to safeguard all voice/data systems
Hard-wired multi-base mounting framework permits

SKU: DTK-2MHLP75FWB Categories: Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules Brand: Ditek

Description

The DTK-2MHLP75FWB is engineered to offer advanced surge protection utilizing unique load removal technology for dual 75V loop circuits.

Safeguards two 75V pairs per module
Incorporates multi-stage silicon avalanche diode (SAD) technology for optimal protection
Features field-replaceable modules and a hard-wired multi-base mounting system, enabling the protection of up to ten pairs with a shared ground

Certifications
NDAA Compliant	Yes
TAA Compliant	Yes

Environmental Conditions
Operating Temperature (T-T)	-40°F - 158°F

General Information
Brand Name	DITEK
Manufacturer	DITEK Corporation
Manufacturer Part Number	DTK-2MHLP75FWB
Product Model	DTK-2MHLP75FWB
Product Name	DTK-2MHLP75FWB 2-Outlet Surge Protector Module
Product Series	2MHLP
Product Type	Surge Protector Module

Interfaces/Ports
Receptacles	Terminal Block

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Height	2.6"
Weight (Approximate)	2.79 oz
Width	1.5"

Power Description
Input Voltage	75V DC

Technical Information
Dataline Protection	Voice/Data/Loop

Warranty
Limited Warranty	10 Year
