Description

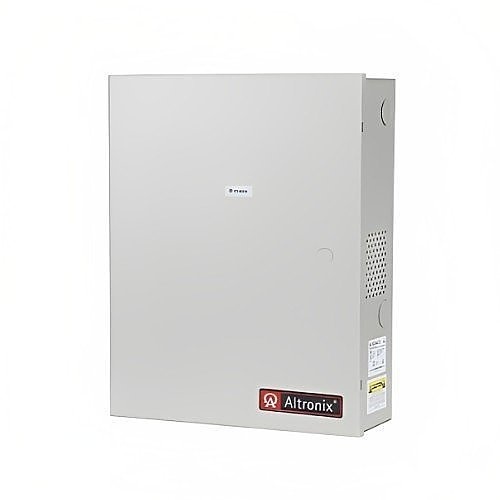

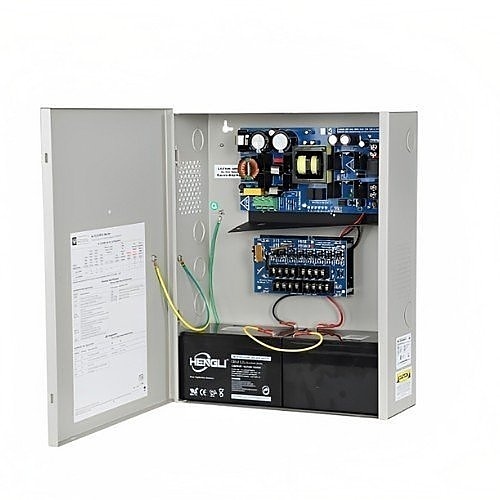

The Altronix AL1024NK8 power conversion system transforms a 115VAC 60Hz input into eight fuse-protected 12VDC or 24VDC outputs, with a maximum total capacity of 10A. Its dual input configuration allows power allocation from two independent low voltage 12VDC or 24VDC power supplies to eight separately controlled, fuse-protected outputs.
**Key Features:**
– **AL1024ULXB2 Power Supply/Charger:**
– Input: 115VAC, 60Hz, with 4.2A max load and 5A/250V input fuse
– Outputs: 24VDC, with a continuous max current of 10A
– Protection: Overvoltage protection, filtered and regulated output
– Battery Backup: Supports 12AH/12VDC sealed lead acid or gel-type batteries, with capability for expanded capacity up to 40AH or 65AH.
– **Instantaneous Failover Supervision:**
– Features like AC failure detection and battery status monitoring via Form C contacts.
– **LED Indicators:**
– Visual indicators for 115VAC presence, DC output status, and battery connectivity.
– **PDS8 Dual Input Power Distribution Module:**
– Input: 12VDC or 5VDC from VR6 and 24VDC from AL1024ULXB2
– Fuse Protection: 10A/32V fuse
– Outputs: Eight individually selectable fuse-protected outputs, adjustable to power Input 1 or Input 2, and can be turned OFF for maintenance tasks
– Output Ratings: 3A/32VDC fuses
– Indicators: Bi-colored LEDs for voltage status.
– **VR6 Voltage Regulator:**
– Input: 24VDC from AL1024ULXB2
– Output: 12VDC, maintaining 6A continuous current
– Surge suppression for added protection
– **Environmental Specifications:**
– Operating and storage temperatures range: 0°C to 49°C and -20°C to 70°C, respectively
– Relative humidity: 85% ± 5%
– Energy Output: Approximately 123 BTU/Hr.
This power conversion and distribution system is tailored for controlled power delivery, ensuring robust protection and reliability in various industrial and commercial applications.
