Brand: Altronix

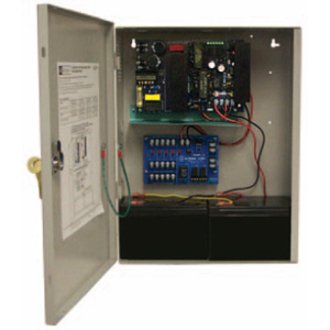

Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red

Name: Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red
Brand: Altronix
SKU: AL1024ULMR
Availability: InStock

in stock

Special Order

$328.75

Five PTC Class 2 Power Outputs
Comprehensive short circuit and thermal overload protection.
Filtered and electronically stabilized output voltage.
AC input and DC output LED status indicators
LEDs for power and input trigger status

SKU: AL1024ULMR Categories: Batteries & Power Supplies, Power Supplies, Power Supplies & Boards Brand: Altronix

Description

The AL1024ULMR model is tailored for integration with access control systems and related accessories. This power module transforms a 115VAC 60Hz input into five PTC-protected, Class 2 rated, power-limited outputs, each rated at 2 amps. It delivers 24VDC at 10 amps for access control applications and 24VDC at 8 amps, scaling up to 10 amps during alarm conditions for fire alarm systems. The AL1024ULM is the grey cabinet variant of this power solution.

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL1024ULMR
Product Model	AL1024ULMR
Product Name	AL1024ULMR Proprietary Power Supply
Product Type	Proprietary Power Supply

Miscellaneous
Compatibility	Mag LockElectric StrikeMagnetic Door HolderFire Alarm Control Panel
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Color	Gray, Red
Depth	3.3"
Form Factor	Wall Mount
Height	13.5"
Weight (Approximate)	9.60 lb
Width	13"

Power Description
Input Voltage	110V AC
Output Current	10A

TBD
Amperage	10A

Technical Information
Output Voltage	24V DC

Warranty
Limited Warranty	Lifetime
