Description

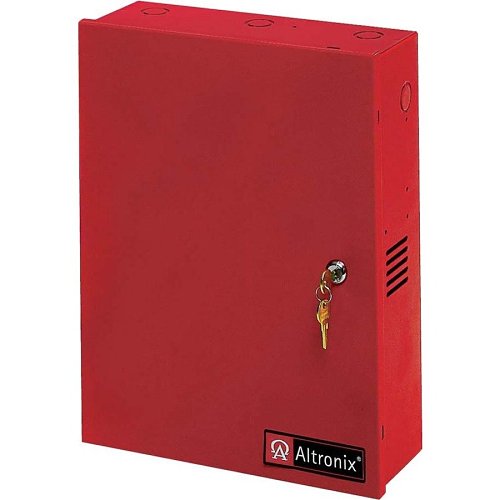

The AL1024ULXPD4CBR is a versatile multi-output power supply and battery charger designed for access control and fire alarm applications, converting a 115VAC, 60Hz input into four (4) Class 2 Rated, power-limited 24VDC outputs. Key features include:
– **Input Specifications:** Operates on 115VAC, 60Hz with a current draw of 4.2A. Protected by an input fuse rated at 3.5A/250V.
– **Output Specifications:** Delivers a continuous 10A supply current for access control systems and 8A for fire alarm systems. It offers four (4) Class 2 Rated PTC protected outputs, each with auto-resettable functionality, rated at 2.5A. Outputs are filtered and electronically regulated, featuring built-in protection against short circuits and thermal overload.
– **Battery Backup:** Equipped with an integrated charger compatible with sealed lead acid or gel type batteries. Automatically switches to standby battery power during AC failure.
– **Supervision Capabilities:** Includes AC fail supervision with form “C” contacts and a selectable notification trigger set at 30 seconds or 6 hours. Low battery and battery presence are also supervised via form “C” contacts.
– **Visual Indicators:** Features LED indicators for both AC input and DC output status.
– **Environmental Specifications:** Operating temperature ranges from 0 to 49° C (32 to 120° F), with storage temperatures between -20 to 70° C (-4 to 158° F) and relative humidity maintained at 85% +/- 5%.
– **System Requirements:** The unit requires an AC input VA of 483VA and produces approximately 123 BTU/Hr.
This power supply/charger is ideal for ensuring reliable power distribution and backup in critical access control and fire alarm system installations.
