Description

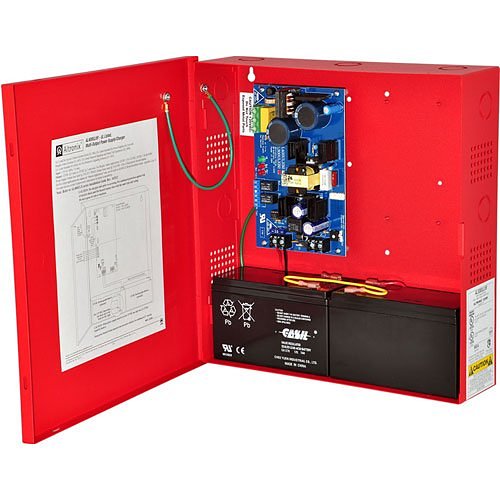

The AL400ULXR is an advanced power supply/charger designed to transform a 115VAC/60Hz input into a selectable 12VDC or 24VDC Class 2 Rated power-limited output. Key features include:
**Input Specifications**:
– Accepts 115VAC, 60Hz with a 3.5A input requirement.
– Equipped with a 3.5A/250V input fuse for protection.
**Output Specifications**:
– Offers a selectable output of 12VDC or 24VDC for diverse applications, including burglar alarm systems.
– For 12VDC, outputs range from 11.5VDC to 13VDC; for 24VDC, outputs vary from 23VDC to 26VDC.
– Provides a supply current of 12VDC at 4A or 24VDC at 3A.
– Delivers a Class 2 Rated power-limited output that is filtered and electronically regulated.
– Includes short circuit and thermal overload protection for enhanced reliability.
**Battery Backup Features**:
– Comes with an integrated charger suitable for sealed lead acid or gel type batteries.
– Automatically switches to standby battery mode upon AC failure.
**Supervision Functions**:
– Offers AC fail supervision through form “C” contacts, with a notification trigger selectable for either 30 seconds or 6 hours.
– Provides low battery and battery presence supervision using form “C” contacts.
**Visual Indicators**:
– Equipped with LED indicators for AC input, DC output, and battery status.
**Environmental Conditions**:
– Operates within a temperature range of 0°C to 49°C (32°F to 120°F).
– Storage temperatures supported from -20°C to 70°C (-4°F to 158°F).
– Maintains a relative humidity of 85% +/- 5%.
**Energy Specifications**:
– Approximate BTU/Hour: 25 BTU/Hr for 12VDC and 37 BTU/Hr for 24VDC.
– System AC input VA requirement is 402.5VA.
This power supply/charger is designed for efficient performance in critical power management applications across various industries.
