Description

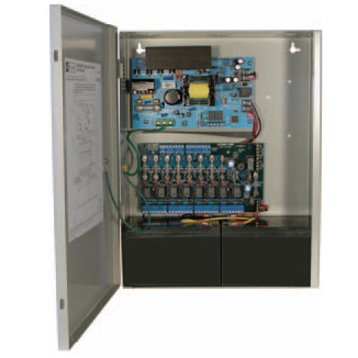

The AL600ULACMCBR power distribution module transforms a 115VAC 60Hz input into eight independently controlled outputs, offering options for 12VDC or 24VDC in both Fail-Safe and Fail-Secure configurations, with a total capacity of 6A continuous current. Outputs are activated via an open collector sink or normally open (NO) dry trigger, interfacing seamlessly with various access control systems such as card readers, keypads, push buttons, PIR sensors, and more. This module efficiently distributes power to a wide range of access control devices, including magnetic locks, electric strikes, and magnetic door holders. Capable of operating in either Fail-Safe or Fail-Secure modes, it supports power supply options through a single factory-installed source for both board and lock operations or through two independent power sources—one for board operation and another for lock or accessory power. Additionally, the unit features a Fire Alarm Control Panel (FACP) interface, facilitating emergency egress, alarm monitoring, and auxiliary device activation, with the fire alarm disconnect function selectable for any or all of the eight outputs independently.
