Brand: Altronix

Altronix AL602ULADA replaces AL600ULADA NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 6.5A, 120VAC, Red BC400 Enclosure

Name: Altronix AL602ULADA replaces AL600ULADA NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 6.5A, 120VAC, Red BC400 Enclosure
Brand: Altronix
SKU: AL602ULADA
Availability: InStock

in stock

Special Order

$399.40

2-wire horn/strobe synchronization mode enables simultaneous silencing/deactivation of audible and visual notification devices.
Signal circuit trouble memory assists in diagnosing intermittent loop issues.
Ground fault detection feature included.
Compatible with 12VDC or 24VDC fire alarm control panels.
Output loop supervision can be directed to either Input 1 or Input 2.
Signal circuit trouble memory aids in identifying intermittent loop faults.
Common trouble input and output for integration with external trouble alerts.
Equipped with ground fault detection.

SKU: AL602ULADA Categories: Batteries & Power Supplies, Power Supplies, Power Supplies & Boards Brand: Altronix

Description

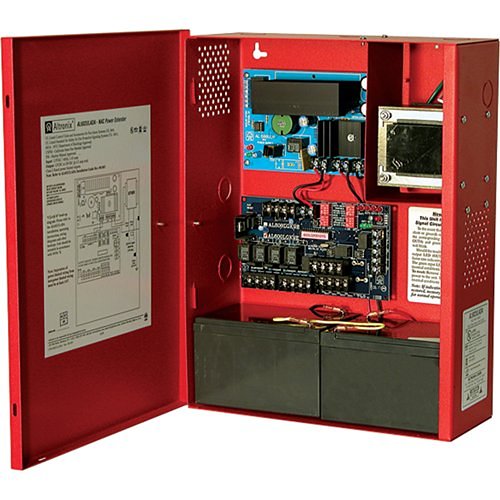

The AL602ULADA is a highly economical voltage-regulated remote NAC Power Extender, designed for seamless integration with any 24-volt Fire Alarm Control Panel (FACP). It is primarily used for expanding Notification Appliance Circuits (NAC) to meet ADA compliance standards and delivering auxiliary power to enhance the functionality of system accessories.

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL602ULADA
Product Model	AL602ULADA
Product Name	Proprietary Power Supply
Product Type	Proprietary Power Supply

Miscellaneous
Compatibility	Fire Alarm System
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Color	Red
Depth	5"
Form Factor	Wall Mount
Width	12"

Power Description
Input Voltage	110 V AC
Output Current	6.5A

Technical Information
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	Lifetime
