Description
The SMP10PM24P8 power supply/charger transforms a 115VAC 50/60Hz input into a 24VDC output, delivering a continuous supply current of 10 amps across eight fuse-protected outputs.

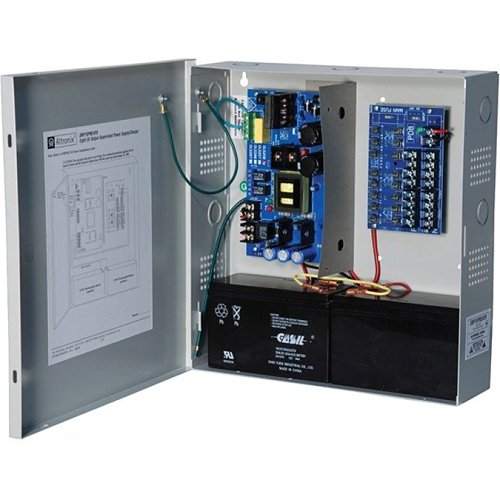

Altronix SMP10PM24P8 Power Supply Charger, Fused Outputs, 24VDC at 10A, 115VAC, Supervision, BC300 Enclosure
in stock
Special Order
$302.76
- 8-Channel Power Distribution/Charger.
- 24V DC with 10A capacity, featuring fused outputs and comprehensive AC and battery status monitoring.
- CE certified for compliance.
- AC Failure Monitoring with Form "C" Contact Rated at 1 Amp, 28V DC.
- Integrated Charger Compatible with Sealed Lead Acid or Gel Type Battery Backup.
SKU:
SMP10PM24P8
Categories: Batteries & Power Supplies, Power Supplies, Power Supplies & Boards
Brand: Altronix
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | SMP10PM24P8 |
| Packaged Quantity | 1 |
| Product Model | SMP10PM24P8 |
| Product Name | SMP10PM24P8 Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Depth | 4.5" |
| Form Factor | Wall Mount |
| Height | 15.5" |
| Weight (Approximate) | 9.60 lb |
| Width | 12.2" |
| Power Description | |
| Input Voltage | 110V AC |
| Output Current | 10A |
| TBD | |
| Amperage | 10A |
| Technical Information | |
| Output Voltage | 24V DC |
| Warranty | |
| Limited Warranty | Lifetime |
