Description

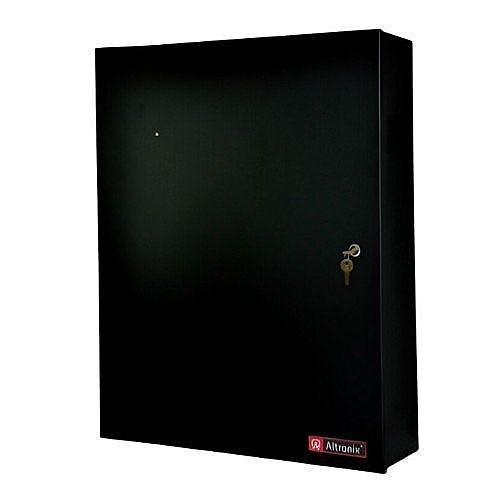

The Altronix T2MK7716 access control kit includes the Trove2 enclosure, TM2 and Mercury-compatible backplanes, and TMV2 door backplane. It features two 24 VDC, 10 A power supply/chargers, a 12 VDC voltage regulator, a dual-voltage power distribution module with eight fuse-protected outputs, and two access control modules with eight fuse-protected outputs each. This comprehensive solution supports various combinations of Mercury boards, accommodating up to sixteen doors within a single enclosure. The Trove system enhances board layout and wire management, optimizing installation efficiency and reducing labor costs. Compatible with top industry brands such as AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, and Vanderbilt.
Key Features:
**AL1024ULXB2 Power Supply/Charger:**
– Input Voltage: 115 VAC, 60 Hz, 4.2 A max
– Main Fuse: 5 A/250 V
– Continuous Output: 24 VDC, 10 A max
– Protection: Overvoltage, filtered and regulated
– Battery Backup Capacity (separate enclosure required): 12 AH/12 VDC (2 within enclosure), 40 AH/65 AH
– Type: Sealed lead acid or gel
– AC Failover: Instantaneous
– Supervision Contacts: AC failure, battery conditions
**Indicators:**
– LED Status: Input (115 VAC), DC Output, Battery Status
**PDS8 Dual Input Power Distribution Module:**
– Input Voltage: 12 VDC from VR6 and 24 VDC from AL1024ULXB2
– Input Fuse: 10 A/32 V
– Voltage Options: 12 and/or 24 VDC
– Customizable Outputs: Power Input 1 or 2, serviceable OFF position
– Output Ratings: 3 A/32 V fuses
– LED Indicators: Eight output LEDs (green for 12 VDC, red for 24 VDC)
**VR6 Voltage Regulator:**
– Input: 24 VDC from AL1024ULXB2
– Output: 12 VDC, 6 A continuous
– Additional Features: Surge suppression
– LEDs for Status: Input and output power
**ACM8 Access Power Controllers:**
– Input: 24 VDC from AL1024ULXB2
– Input Fuse: 10 A/250 V
– Control: Eight independently controlled fused outputs
– Configurable Power Outputs: Fail-Safe/Fail-Secure, auxiliary
– Output Fuses: 3.5 A/250 V
**Environmental Specifications:**
– Operating Temperature: 0° C to 49° C (32° F to 120° F)
– Storage Temperature: -20° C to 70° C (-4° F to 158° F)
– Relative Humidity: 85% +/- 5%
– Energy Use: Approximately 289 BTU/Hr
