Description

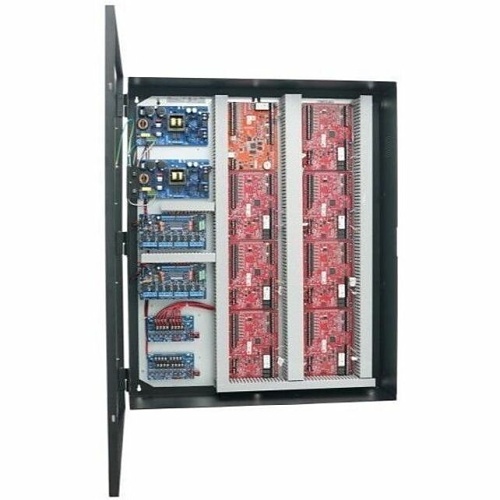

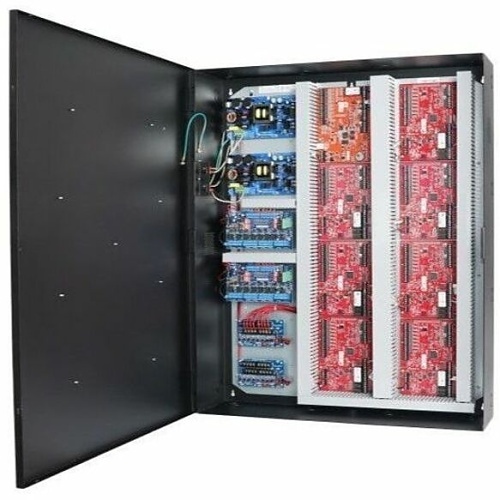

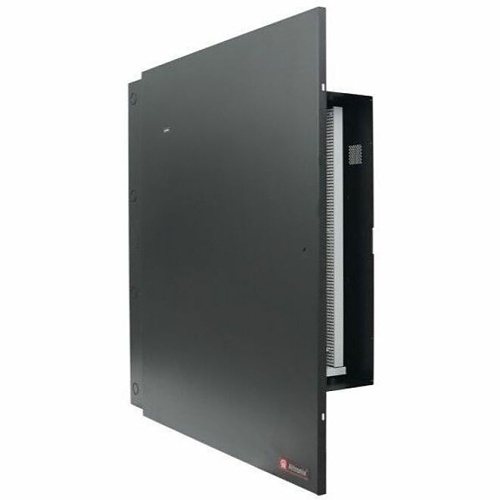

The Altronix T3M77LXK1D is a comprehensive 16-door access control and power integration kit designed for seamless compatibility with the Mercury hardware platform. This fully integrated unit combines Altronix power supplies and sub-assemblies, along with factory-installed wire management solutions and pre-configured terminal blocks. It delivers robust power and dual voltage outputs to effectively support both Mercury platform controllers and associated locking mechanisms. The T3M77LXK1D supports one Intelligent Dual Reader Controller and up to seven Dual Reader Interface Modules, making it ideal for demanding security applications.
Featuring the Trove Plus system, this solution streamlines field installations while ensuring reliable and consistent power and control. It is also compatible with notable Mercury partners such as AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, and Vanderbilt.
Key features include:
– Two AL1024ULXB2 Power Supply/Chargers that offer a 24 VDC output with a continuous current of 10 A, integrated with overvoltage protection and filtered regulation.
– Battery backup support (not included) for 12 AH/12 VDC with options for expanded capacity through separate enclosures.
– Two VR6 Voltage Regulators that convert input voltage to 12 VDC with a 6 A continuous current and surge protection.
– Two ACMS8CB Dual Input Access Power Controllers providing eight independently controlled fail-safe/fail-secure power outputs.
– Two PDS8CB Dual Input Power Distribution Modules offering selectable 12 VDC and/or 24 VDC outputs.
– Comprehensive LED indicators ensure clear status monitoring for AC input, DC output, battery condition, and power distribution status.
Environmentally, the system operates effectively within a temperature range of 0° C to 49° C (32° F to 120° F) and can be stored between -20° C and 70° C (-4° F to 158° F) with a relative humidity tolerance of 85% +/- 5%, producing approximately 289 BTU/Hr.
